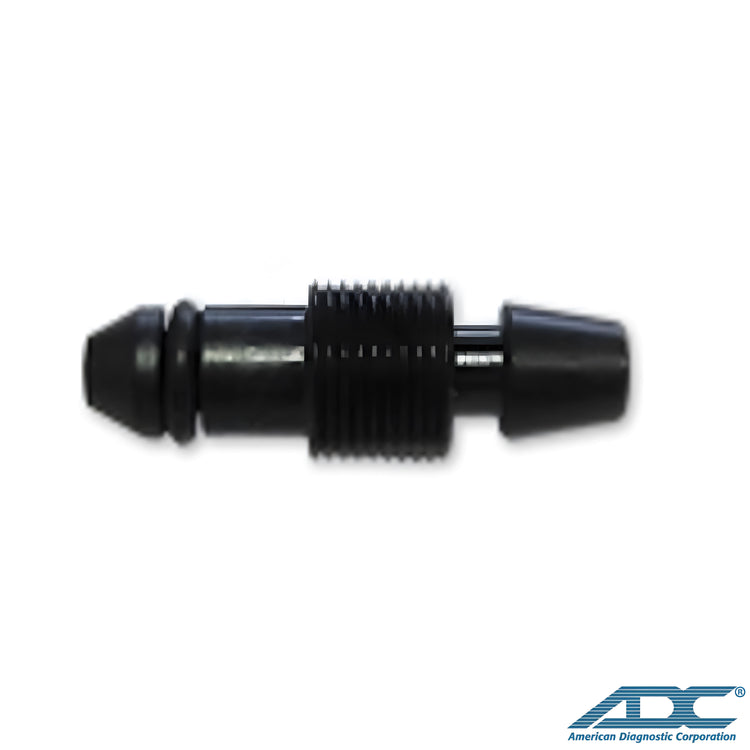

ADC 804CN Legacy Plastic Slip Connector for 804N Palm Gauge
The ADC 804CN connector (FDA GUDID "Connector-804N") is the American Diagnostic Corporation slip connector for the 804N palm gauge, primary DI 00634782083274.1

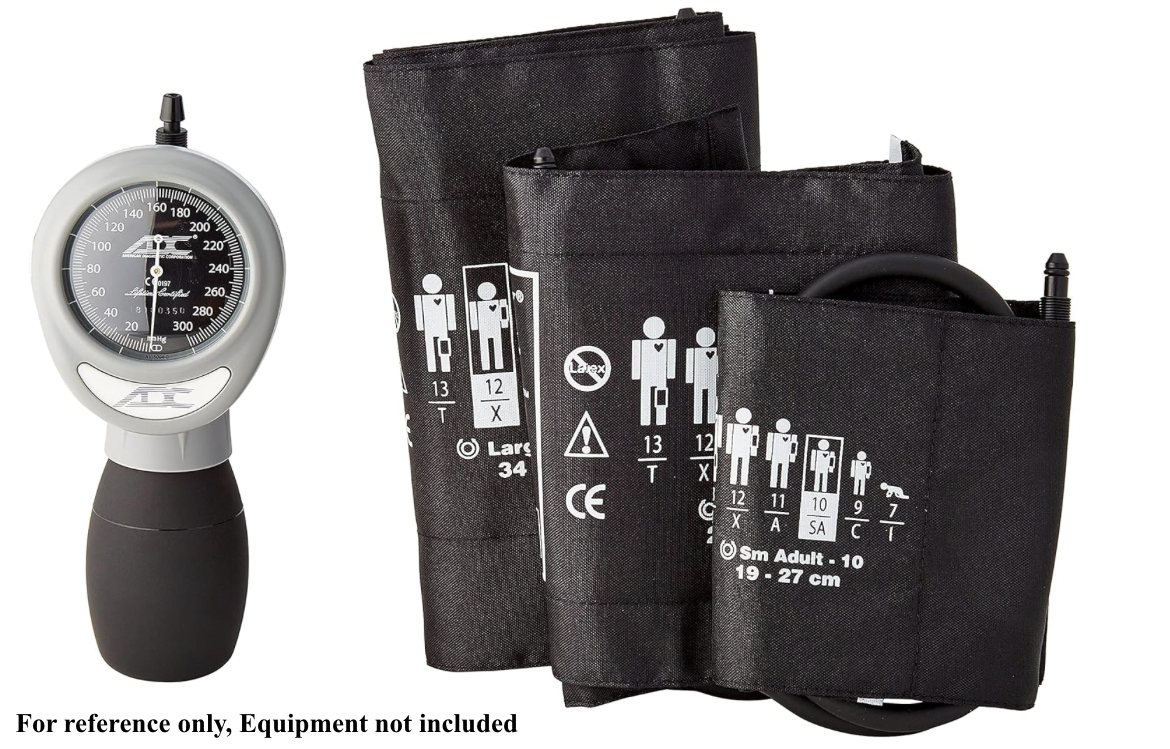

An earlier ADC accessories IFU (9355N-00 rev 4) tells users to fit the supplied luer slip connector to the cuff tubing and insert it into the port at the top of the 804N palm gauge. The current revision (rev 13) uses a metal connector instead.23
Product Highlights:
- Legacy 804N fit: the luer slip connector friction fits onto most one-tube cuff and bladder systems and inserts into the 804N port.2
- Turn to engage: insert into the port at the top of the palm gauge and turn slightly.2
- Do not force it: ADC warns not to force the connector into the port.2
- One-tube systems: the palm style manometer is designed for one-tube cuffs.23
Specifications:
| Manufacturer | American Diagnostic Corporation1 |
|---|---|
| ADC part | 804CN1 |
| GUDID description | Connector-804N1 |
| FDA GUDID | Primary DI 00634782083274, product code DXQ (Blood Pressure Cuff)1 |
| Store SKU | ADC-804CN-EA |
| Fits | 804N palm gauge with the luer slip port (earlier configuration)2 |
Related Products:
Frequently Asked Questions:
What is the ADC 804CN?
The ADC slip connector for the 804N palm gauge. FDA AccessGUDID lists it as Diagnostix 804CN, "Connector-804N".1
How is the legacy luer slip connector installed?
Insert its barbed end into the free end of the cuff tubing, then insert it into the port at the top of the palm gauge and turn slightly to engage.2
Does the current 804N use this connector?
ADC's current accessories IFU (rev 13) describes inserting a metal connector into a metal receiver on the 804N. The slip connector instructions come from the earlier rev 4.23
Will it fit any BP cuff?
ADC states the connector friction fits onto the tubing of most commercially available one-tube cuff and bladder systems.2
Manufacturer Sources
- U.S. FDA AccessGUDID. Diagnostix 804CN, "Connector-804N", American Diagnostic Corp, primary DI 00634782083274, read 2026-11-09. https://accessgudid.nlm.nih.gov/devices/00634782083274
- American Diagnostic Corporation. ADC Sphygmomanometer Accessories Directions for Use, 9355N-00 rev 4 (earlier revision, copy hosted by 4MD Medical), read 2026-11-09. https://4mdmedical.com/wp-content/uploads/2024/pdf/adc-diagnostix-aneroid-sphygmomanometer-accessories-instructions-for-use.pdf
- American Diagnostic Corporation. ADC Sphygmomanometer Accessories Instructions for Use, 9355N-00 rev 13, read 2026-11-09. https://www.adctoday.com/sites/default/files/literature/9355N-00%20rev%2013%20web.pdf
Sourced from American Diagnostic Corporation manufacturer documentation and FDA AccessGUDID. Sold by Pacific Biomedical.
