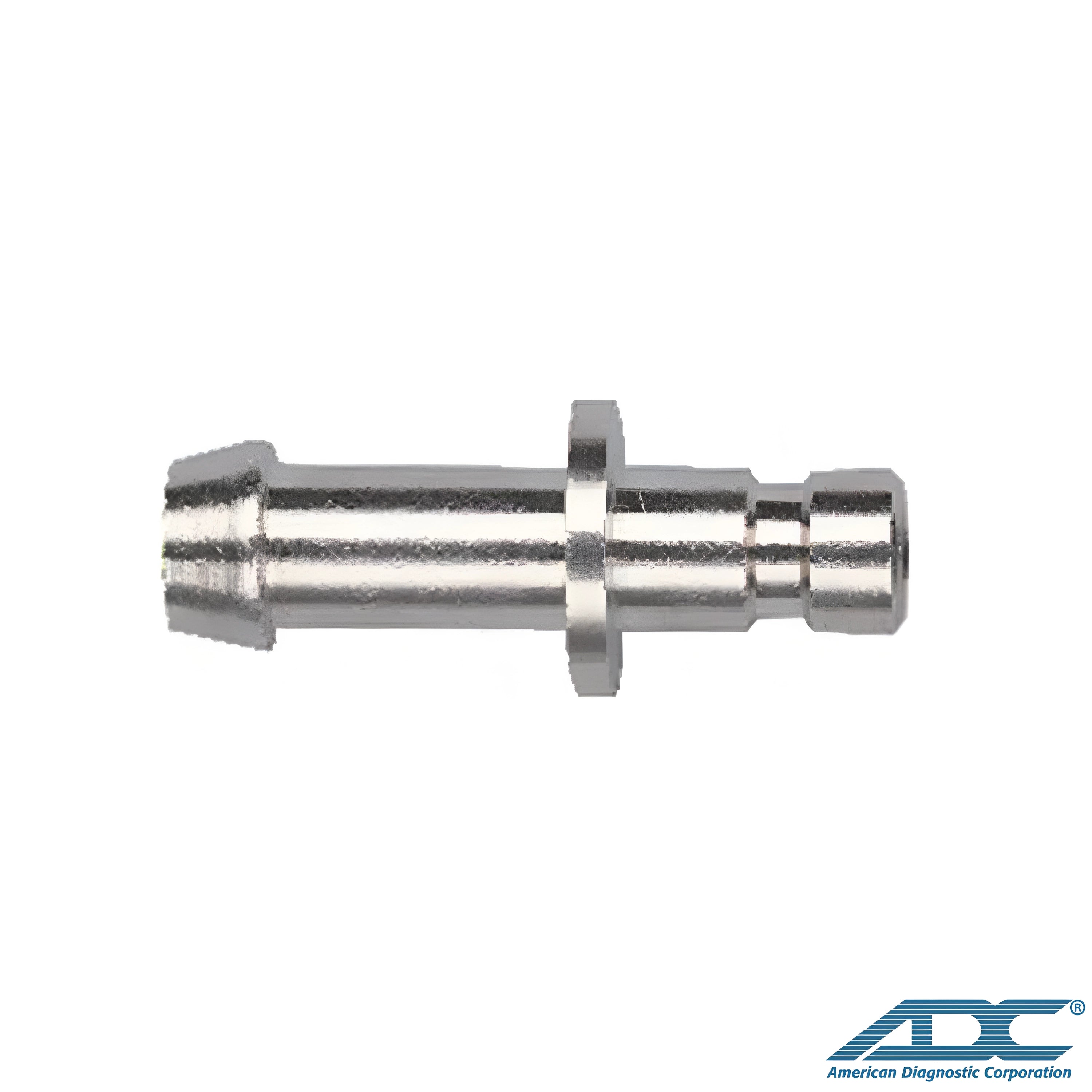

ADC 8974M Male Metal Bayonet Connector for BP Cuffs, 10/Pkg
The ADC 8974M male bayonet connector is the connector American Diagnostic Corporation fits to Adcuff inflation systems (models starting with 865) since September 1, 2022, under FDA guidance meant to reduce misconnections between medical devices.1
ADC also lists 8974M as a replacement connector for the Diagnostix 703 palm aneroid.2
This listing is a package of 10 connectors.
Product Highlights:
- Bayonet standard: part of ADC's change to bayonet connectors on Diagnostix clock aneroids and Adcuff inflation systems.1
- Mates with 8974F: clock aneroids 750W, 750D and 752M carry the female bayonet connector 8974F on the coiled tubing.1
- 703 replacement part: listed as Connector 2 for the Diagnostix 703, beside Connector 1, 804C3.2
- New pairs work together: ADC states a new clock aneroid and new inflation systems arrive with the updated connector style and can be used together immediately.1
Specifications:
| Manufacturer | American Diagnostic Corporation, Hauppauge, NY1 |
|---|---|
| ADC item | 8974M male bayonet connector12 |
| Store SKU | ADC-8974M-10 |
| Pack | 10 per package |
| Fitted to | Adcuff inflation systems, models starting with 8651 |
| Mates with | 8974F female bayonet connector1 |
| Listed for | Diagnostix 703 replacement parts2 |
Legacy Compatibility:

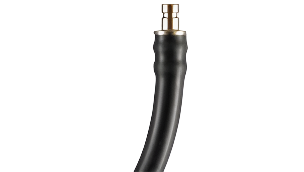

- A new inflation system with an 8974M connector needs one connector converted to work with a legacy clock aneroid: replace the cuff connector with the legacy kit 891FKIT, or add adapter 8974FKIT to the gauge tubing.1
Related Products:
Frequently Asked Questions:
Are blood pressure cuff connectors universal?
Not across ADC connector generations. ADC moved Adcuff inflation systems to the 8974M male bayonet connector in 2022. A legacy clock aneroid needs a connector conversion (891FKIT) or an adapter (8974FKIT) to work with the new cuffs.1
What is a bayonet type connector on a BP cuff?
It is the connector style ADC adopted on Diagnostix clock aneroids and Adcuff inflation systems, following FDA regulatory guidance meant to reduce the risk of misconnections between medical devices or accessories. On ADC palm aneroids, the metal bayonet connector inserts into a metal receiver until it clicks.13
What does the 8974M connect to?
The 8974F female bayonet connector on ADC clock aneroids 750W, 750D and 752M. ADC also lists 8974M as a Diagnostix 703 replacement connector.12
When did ADC change to bayonet connectors?
Beginning September 1, 2022.1
How do I use a new cuff with an old clock aneroid?
Replace the connector on the new inflation system with legacy kit 891FKIT, or add the 8974FKIT adapter to the coiled tubing of the clock aneroid.1
Manufacturer Sources
- American Diagnostic Corporation. Connector Update, read 2026-11-09. https://www.adctoday.com/connector-update
- American Diagnostic Corporation. Diagnostix 703 Palm Aneroid Sphygmomanometer, product page with replacement parts, read 2026-11-09. https://www.adctoday.com/products/703
- American Diagnostic Corporation. Diagnostix Sphygs Instructions for Use, 9350N1-00 rev 0, read 2026-11-09. https://www.adctoday.com/sites/default/files/literature/9350N1-00%20rev%200.pdf
Sourced from American Diagnostic Corporation manufacturer documentation and FDA AccessGUDID. Sold by Pacific Biomedical.
