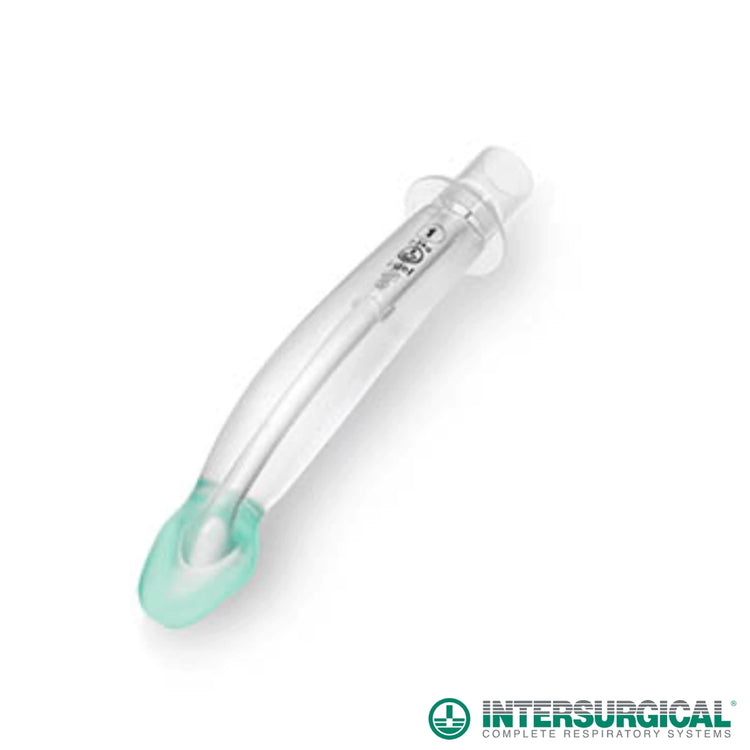

Intersurgical i-gel Airway, Size 1, Neonate 2-5 kg, 8201000
The Intersurgical i-gel size 1 (8201000) is a single use, latex free supraglottic airway with a non-inflatable gel cuff for neonate patients of 2 to 5 kg (5 to 11 lbs).12 Size 1 is the neonatal size and has no gastric channel.3 Sold each; Intersurgical boxes hold 10.2
Product Highlights:
- Weight guidance: Neonate size for 2 to 5 kg (5 to 11 lbs)1
- Non-inflatable cuff: Soft gel-like cuff mirrors the perilaryngeal anatomy, so no cuff inflation is needed3
- Gastric channel: Size 1 has no gastric channel; every other i-gel size has one.3
- Pediatric use: Indicated for routine and emergency anesthetics of fasted patients and resuscitation of the unconscious patient1
- Single use: Latex and PVC free, made from medical grade thermoplastic elastomer2, packaged sterile4
What Is in the Box:
- 1 i-gel supraglottic airway, size 1 (8201000), in its protective cradle or cage pack2
Specifications:
| Manufacturer | Intersurgical2 |
|---|---|
| Part number | 82010002 |
| Size | 11 |
| Patient | Neonate1 |
| Weight guidance | 2-5 kg (5-11 lbs)1 |
| Maximum nasogastric tube | No gastric channel3 |
| Maximum tracheal tube | Not indicated as an intubation conduit5 |
| Cuff | Non-inflatable, soft gel-like3 |
| Connector | 15 mm3 |
| Material | Medical grade thermoplastic elastomer, latex and PVC free2 |
| Sterile and single use | Yes4 |
| MRI safety | MR Safe4 |
| Box quantity (Intersurgical) | 102 |
| Sold as | Each |
| GUDID DI (each) | 050302670762084 |
Related Products:
- i-gel Airway, Size 1.5, 5-12 kg, 8215000
- i-gel Airway, Size 2, 10-25 kg, 8202000
- i-gel Supraglottic Airway, all seven sizes
- Supraglottic Airways collection
Product Guides and Documents:
- i-gel supraglottic airway product page2
- i-gel information sheet, Issue 17.1 (PDF)3
- Using the i-gel supraglottic airway poster (PDF)5
- i-gel pediatric range information sheet, Issue 7 (PDF)1
- i-gel O2 Resus Pack information sheet, Issue 10 (PDF)6
Frequently Asked Questions:
What weight is the i-gel size 1 for (8201000)?
2 to 5 kg (5 to 11 lbs). Size 1 is the neonate size.1
What size i-gel do I need (8201000)?
Choose by patient weight: size 1 for 2 to 5 kg, size 1.5 for 5 to 12 kg, size 2 for 10 to 25 kg, size 2.5 for 25 to 35 kg, size 3 for 30 to 60 kg, size 4 for 50 to 90 kg and size 5 for 90 kg and over.3
What is an i-gel airway (8201000)?
A single use, latex and PVC free second generation supraglottic airway made from medical grade thermoplastic elastomer, with a non-inflatable cuff that seals over the pharyngeal, laryngeal and perilaryngeal structures.2
Is an i-gel considered intubation (8201000)?
No. The i-gel is a supraglottic airway: its tip sits in the upper esophageal opening and its cuff against the laryngeal framework, not in the trachea.5
How is the i-gel different from a laryngeal mask airway (8201000)?
The i-gel seals with a non-inflatable gel cuff, so there is no cuff to deflate before insertion and no cuff to inflate after placement. It was the first major development since the laryngeal mask airway.6
Does i-gel size 1 have a gastric channel (8201000)?
No. The gastric channel is present on every i-gel except size 1.3
What is the pediatric i-gel size 1 used for (8201000)?
Securing and maintaining a patent airway in routine and emergency anesthetics of fasted patients during spontaneous or positive pressure ventilation, and during resuscitation of the unconscious patient, by suitably trained personnel.1
How do you insert an i-gel (8201000)?
Lubricate the back, sides and front of the cuff with a thin layer of water-based lubricant, grasp it along the integral bite block with the cuff outlet facing the chin, then with the head extended and neck flexed glide it down and back along the hard palate until definitive resistance is felt and the incisors rest on the bite block.5
How do you secure an i-gel after insertion (8201000)?
Hold it in place until it is secured, then tape it from maxilla to maxilla (upper jaw to upper jaw).5
Is the i-gel latex free and sterile (8201000)?
Yes. The i-gel is single use, latex free and PVC free2, and 8201000 is supplied sterile.4
Is the i-gel size 1 MR safe (8201000)?
Yes. 8201000 is labeled MR Safe.4
Sources:
Manufacturer Sources
- Intersurgical. i-gel pediatric range information sheet, U.S. Lit No. 224.2, Issue 7 (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel supraglottic airway product page (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel supraglottic airway information sheet, U.S. Lit No. 44.14, Issue 17.1 (accessed 2026-11-07). intersurgicalinc.com.
- U.S. FDA. AccessGUDID record, DI 05030267076208, I-GEL SUPRAGLOTTIC AIRWAY, SIZE 1 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- Intersurgical. Using the i-gel supraglottic airway poster, IGELPOSTER issue 3 (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel O2 Resus Pack information sheet, U.S. Lit No. 100.5, Issue 10 (accessed 2026-11-07). intersurgicalinc.com.
Specifications are from Intersurgical documents and the FDA GUDID record. Use only as directed in Intersurgical labeling.2
