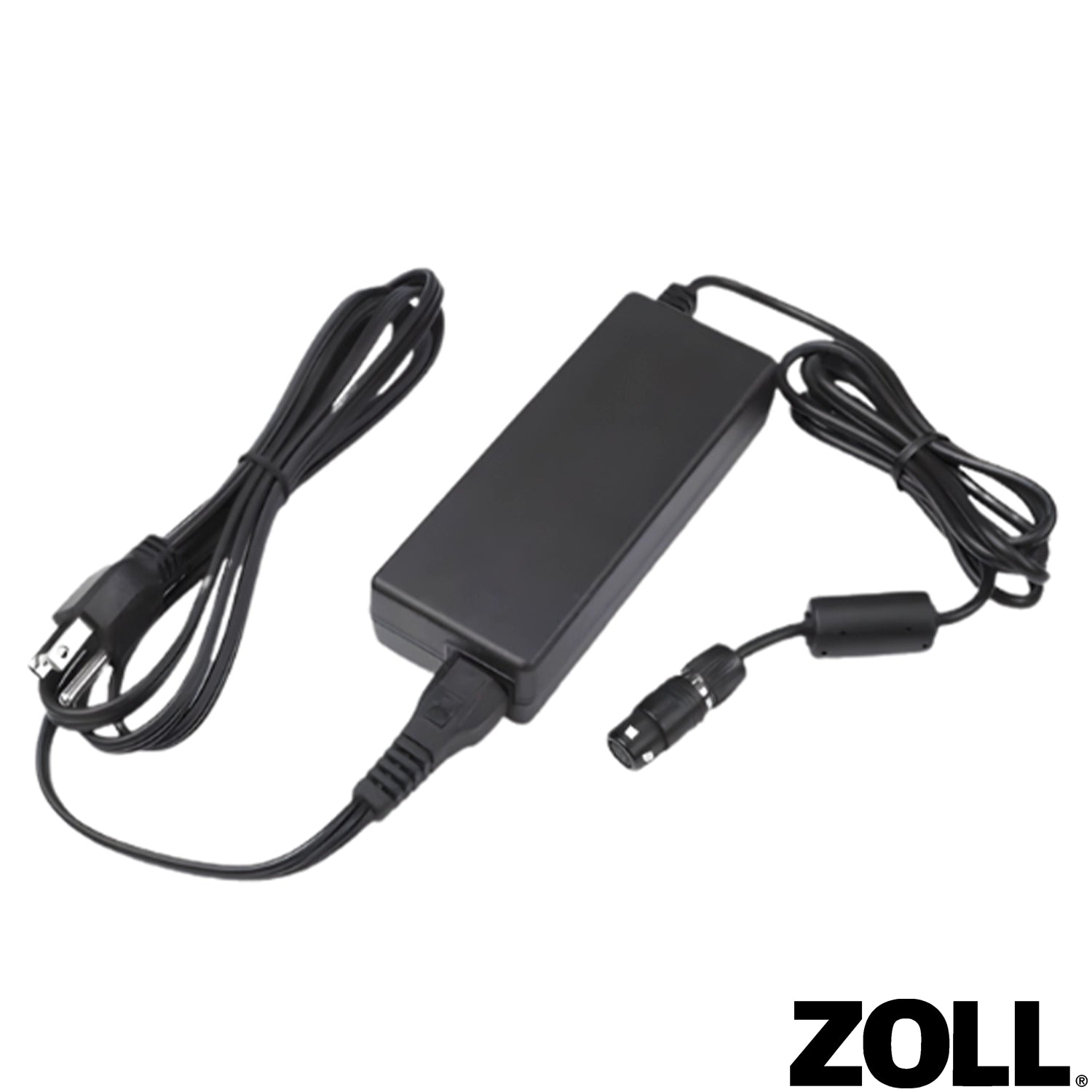

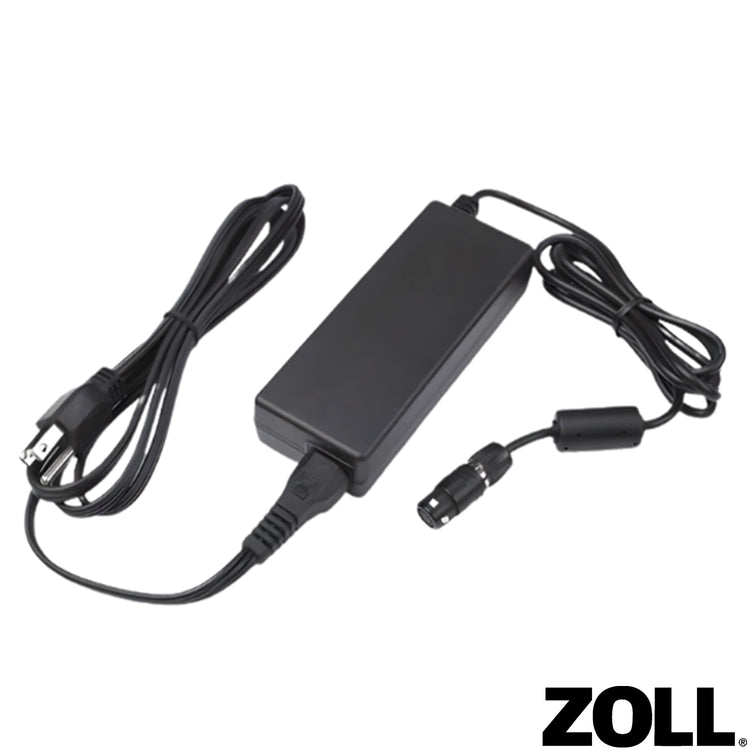

ZOLL EMV+ AC/DC Power Supply and Line Cord, 710-0731-01
The ZOLL 710-0731-01 is the AC/DC power supply and line cord with NEMA 5-15P termination for ZOLL 731 series ventilators, including the EMV+.1 The ZOLL external supply accepts 100 to 240 V AC at 50/60 Hz and delivers 24 V at 4.2 A to the ventilator, which charges its internal battery while it runs.2 We supply it with other ventilator equipment.
Product Highlights:
- ZOLL part 710-0731-01: AC/DC Power Supply and Line Cord with NEMA 5-15P termination.1
- Universal AC input: 100 to 240 V AC, 50/60 Hz; also runs from a 400 Hz input.2
- 24 V DC output: 24 V at 4.2 A to the ventilator.2
- Charges while operating: With external power present, the ventilator charges its internal battery while operating.2
- Use the ZOLL supply: Only use the external power supply provided with the ventilator when connecting to AC power.2
What Is in the Box:
- 1 ZOLL AC/DC power supply with line cord, NEMA 5-15P plug.1
Specifications:
| Manufacturer | ZOLL Medical |
|---|---|
| Part number | 710-0731-011 |
| Description | AC/DC power supply and line cord, NEMA 5-15P termination1 |
| Input | 100 to 240 V AC, 50/60 Hz (400 Hz capable)2 |
| Output to ventilator | 24 V DC, 4.2 A2 |
| For | ZOLL 731 series ventilators, including EMV+3 |
| Pack | 1 each |
Related Products:
Product Guides and Documents:
- ZOLL EMV+ Ventilator Operator's Guide, REF 906-0731-01-01 Rev. N, April 2024 (PDF)2
- ZOLL Portable Critical Care Ventilator Operator's Guide, REF 906-0731-01 Rev. P, December 2024 (PDF)3
Frequently Asked Questions:
What is ZOLL part 710-0731-01 (710-0731-01)?
The AC/DC power supply and line cord with NEMA 5-15P termination for ZOLL 731 series ventilators.1
What input voltage does the EMV+ power supply accept (710-0731-01)?
100 to 240 V AC at 50/60 Hz. It can also power the ventilator from a 400 Hz input.2
What does it deliver to the ventilator (710-0731-01)?
24 V DC at 4.2 A.2
Does the EMV+ charge its battery on AC power (710-0731-01)?
Yes. When external power is present the ventilator charges its internal battery while operating.2
Can I use a different power supply (710-0731-01)?
No. ZOLL directs users to use only the external power supply provided with the ventilator when connecting to AC power.2
What happens if AC power fails (710-0731-01)?
The ventilator switches to its internal battery and sounds the External Power Fault alarm with no interruption in operation.2
Where is the EMV+ operator guide (710-0731-01)?
ZOLL publishes the EMV+ Ventilator Operator's Guide (906-0731-01-01). Appendix B lists the power supply and line cord.2
Manufacturer Sources
- ZOLL Medical. ZOLL Ventilator Operator's Guide, 906-0731-01-05 Rev. C, Appendix B Accessories (accessed 2026-11-07).
- ZOLL Medical. ZOLL EMV+ Ventilator Operator's Guide, REF 906-0731-01-01 Rev. N, April 2024 (accessed 2026-11-07). legacy.zoll.com.
- ZOLL Medical. ZOLL Portable Critical Care Ventilator Operator's Guide, REF 906-0731-01 Rev. P, December 2024 (accessed 2026-11-07). zoll.com.
Use only as directed in the ZOLL EMV+ Ventilator Operator's Guide.2
