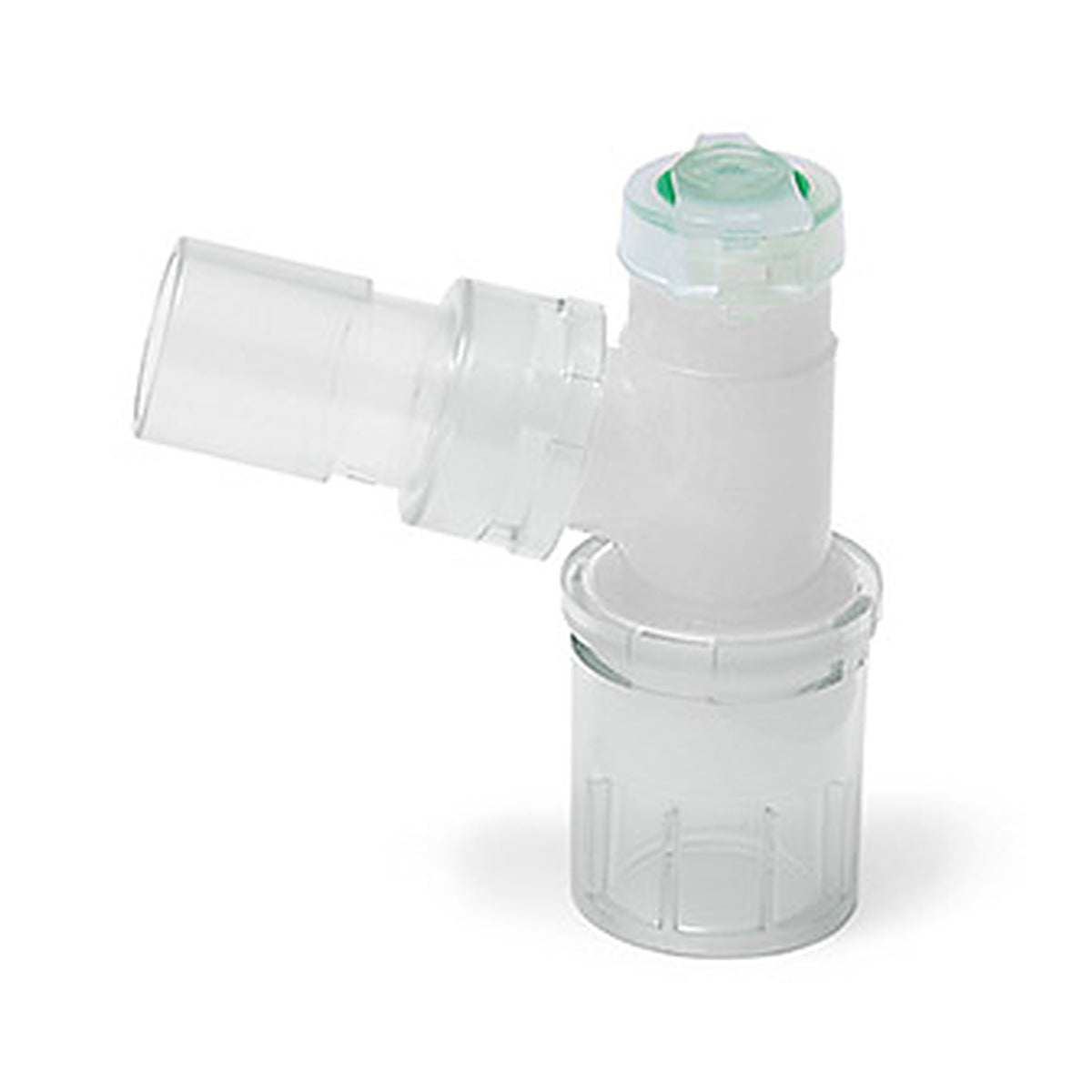

Intersurgical 1898000 double swivel elbow with double flip top cap with seal bronchoscopy port, 15 mm OD by 22 mm OD/15 mm ID

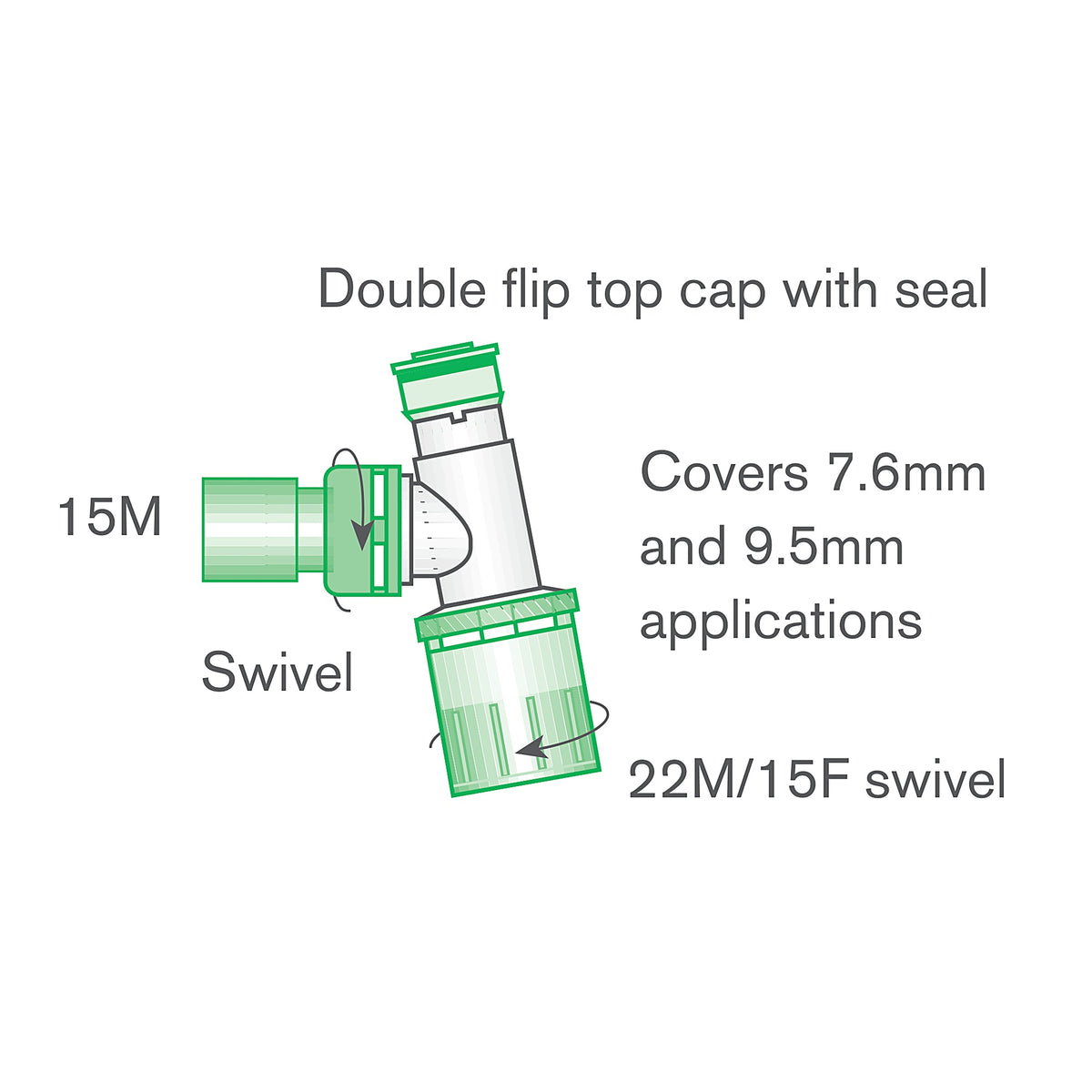

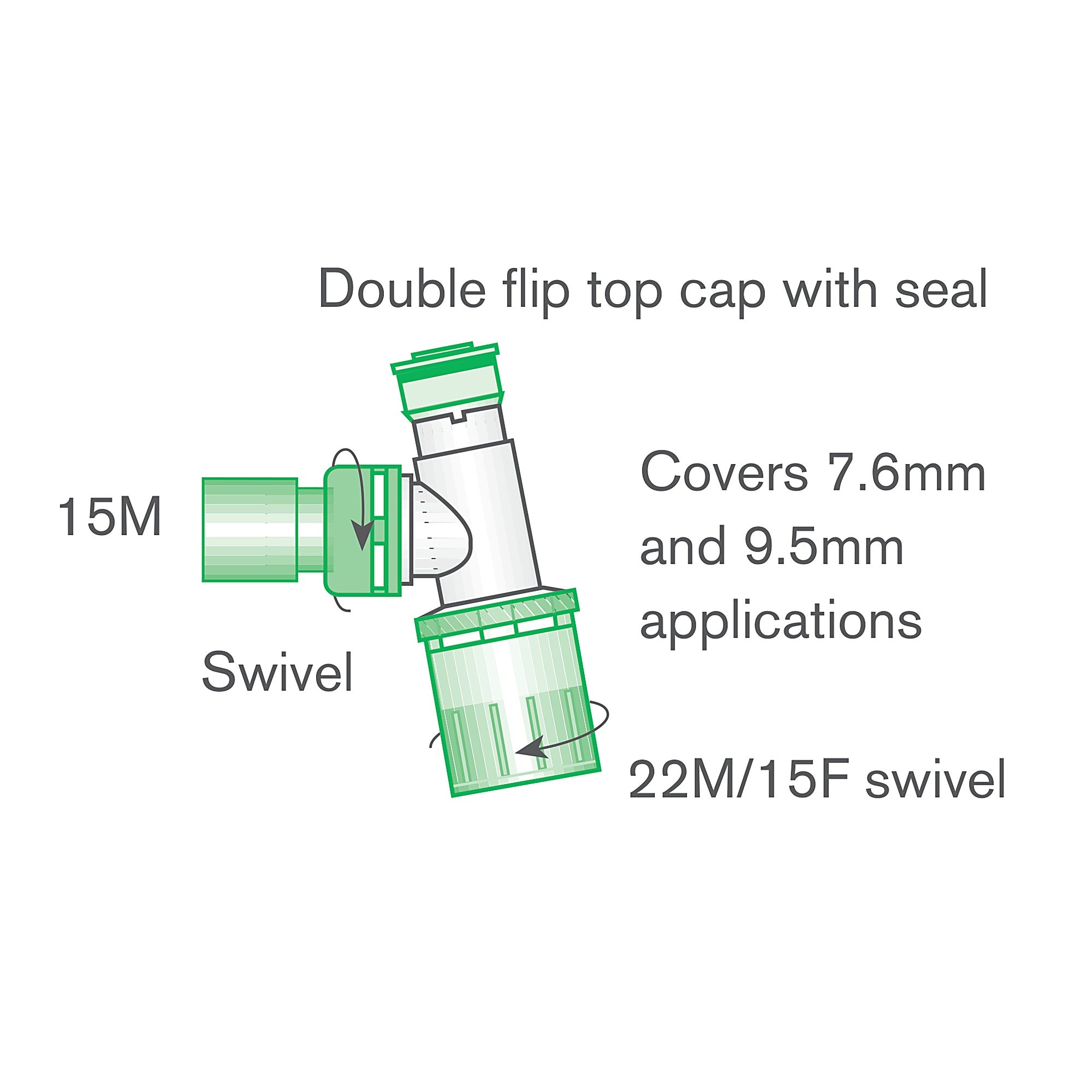

Intersurgical 1898000 diagram: 15M swivel, 22M/15F swivel, double flip top cap with seal covering 7.6 mm and 9.5 mm applications
Intersurgical 1898000 double swivel elbow with double flip top cap with seal bronchoscopy port, 15 mm OD by 22 mm OD/15 mm ID
Intersurgical 1898000 diagram: 15M swivel, 22M/15F swivel, double flip top cap with seal covering 7.6 mm and 9.5 mm applications

Double Swivel Elbow with Bronchoscopy Port, 1898000, 120/Case

SKU: INT-1898000

Intersurgical Inc.

Intersurgical Double Swivel Elbow with Bronchoscopy Port, Double Flip Top Cap with Seal (1898000)

The Intersurgical Double Swivel Elbow with Double Flip Top Cap with Seal (code 1898000) is a 15 mm OD by 22 mm OD/15 mm ID double swivel elbow, sold 120 per case in boxes of 30.1 Opening the first tab on the cap allows a fiber optic bronchoscope to be introduced while airway pressure is maintained, and opening the second tab allows suctioning.1 Both connections swivel for added mobility at the patient connection, and the port caps are tethered so they cannot be lost in use.1 Pacific Biomedical supplies the Intersurgical 1898000 by the case of 120.

Product Highlights:

  • Bronchoscopy port: The first tab of the double flip top cap with seal admits a fiber optic bronchoscope while airway pressure is maintained.1
  • Suction access: The second tab opens for suctioning when required.1 The cap covers 7.6 mm and 9.5 mm applications.2
  • Double swivel: A 15 mm OD swivel and a 22 mm OD/15 mm ID swivel give added mobility at the patient connection.12
  • Tethered caps: Intersurgical port caps are tethered to the connector to prevent loss or misplacement in use.1
  • Compressible volume: 12 ml.2
  • Single use, no natural rubber latex: Single use, supplied non-sterile, and labeled as not made with natural rubber latex.3

What's Included:

  • 120 x Intersurgical double swivel elbow, 15 mm OD, double flip top cap with seal, 22 mm OD/15 mm ID (1898000), packed 30 per box13

Specifications:

Manufacturer Intersurgical Incorporated3
Manufacturer code (MPN) 18980001
Pacific Biomedical SKU INT-1898000
Description Double swivel elbow 15 OD, double flip top cap with seal, 22 OD/15 ID1
Connectors 15 mm OD (15M) swivel and 22 mm OD/15 mm ID (22M/15F) swivel12
Port Double flip top cap with seal: bronchoscope tab and suction tab, covers 7.6 mm and 9.5 mm applications12
Compressible volume 12 ml2
Use Single use3
Sterility Non-sterile (sterile version: 1898000S, 15 per box)34
Natural rubber latex Labeled as not made with natural rubber latex3
Pack 30 per box, 120 per case13
GTIN Case of 120: 05030267116799; box of 30: 05030267116782; unit: 050302670560263
FDA product code BZA, connector, airway (extension)3
GMDN term Straight/elbow breathing circuit connector, single-use3

Use Cases:

  • Fiber optic bronchoscopy through the airway connection while airway pressure is maintained1
  • Suctioning through the second tab of the cap when required1
  • Adding mobility at the patient connection of a breathing system1
  • As a straight/elbow breathing circuit connector (GMDN 61346), connecting a breathing circuit breathing tube to an endotracheal tube, anesthesia face mask or other non-sampling breathing circuit component3

Related products:

Frequently Asked Questions:

What is a double swivel elbow with a bronchoscopy port used for?

It gives added mobility at the patient connection and a sealed access port.1 On 1898000, the first tab of the cap admits a fiber optic bronchoscope while airway pressure is maintained, and the second tab opens for suctioning.1

How does the double flip top cap with seal work?

Open the first tab to introduce a fiber optic bronchoscope while airway pressure is maintained. Open the second tab to suction if required.1 The cap covers 7.6 mm and 9.5 mm applications.2

What connector sizes does Intersurgical 1898000 have?

A 15 mm OD (15M) swivel connector and a 22 mm OD/15 mm ID (22M/15F) swivel connector.12

What is the difference between Intersurgical 1897000, 1898000 and 1899000?

All three are 15 mm OD by 22 mm OD/15 mm ID double swivel elbows.1 1897000 has no port, 1899000 has a flip top cap with a 7.6 mm port for standard 7.6 mm probes or suctioning, and 1898000 has the double flip top cap with seal for bronchoscopy and suctioning.1 See the 1897000 double swivel elbow.

What does the Intersurgical 1898000 connect to?

1898000 is classified as a straight/elbow breathing circuit connector (GMDN 61346), the device category that creates a direct connection between a breathing circuit breathing tube and an endotracheal tube, anesthesia face mask or other non-sampling breathing circuit component.3 On 1898000 the 15 mm OD and 22 mm OD/15 mm ID connectors both swivel2, and the cap gives bronchoscope and suction access.1

Are the port caps attached to the elbow?

Yes. Intersurgical port caps are tethered to the connectors to prevent loss or misplacement in use.1

What is the compressible volume of the 1898000 elbow?

12 ml.2

Is the 1898000 double swivel elbow sterile?

No. 1898000 is supplied non-sterile.3 The sterile version is 1898000S, 15 per box.4

Is the Intersurgical 1898000 latex free and single use?

It is single use and is labeled as not made with natural rubber latex.3

How many elbows come in a case?

120 per case, packed 30 per box.13

What GTIN does the case of 120 carry?

05030267116799 for the case of 120. The box of 30 is 05030267116782, and the unit is 05030267056026.3

How do I order by purchase order or get facility pricing?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 for a purchase order or facility pricing.

References
  1. Intersurgical Incorporated. Double swivel elbows (product range page: double flip top cap with seal function, tethered port caps, 1897000, 1898000 and 1899000, box quantity 30, case quantity 120). Accessed October 30, 2026. us.intersurgical.com.
  2. Intersurgical Ltd. Patient Connections product catalogue, Elbows. p 20 (double swivel elbow 1898000, 15M swivel, 22M/15F swivel, double flip top cap with seal covering 7.6 mm and 9.5 mm applications, compressible volume 12 ml).
  3. US Food and Drug Administration. Global Unique Device Identification Database (GUDID) record: Double swivel elbow 15M, double flip top cap with seal, 22M/15F, version or model 1898000, Intersurgical Incorporated (single use, non-sterile, not made with natural rubber latex, GTIN 05030267056026, packages of 30 and 120, product code BZA, GMDN 61346 straight/elbow breathing circuit connector single-use, in commercial distribution). Accessed October 30, 2026. accessgudid.nlm.nih.gov.
  4. Intersurgical Ltd. Double swivel elbows (international product range page: 1898000S sterile, box quantity 15). Accessed October 30, 2026.

Follow the Intersurgical instructions for use and your facility's policy for airway connection, bronchoscopy and suctioning.
