Delta APRU 6L Autonomous Portable Blood Refrigerator

This item requires a clinical attestation, confirmed in your cart.

SKU: DD-APRU-6L

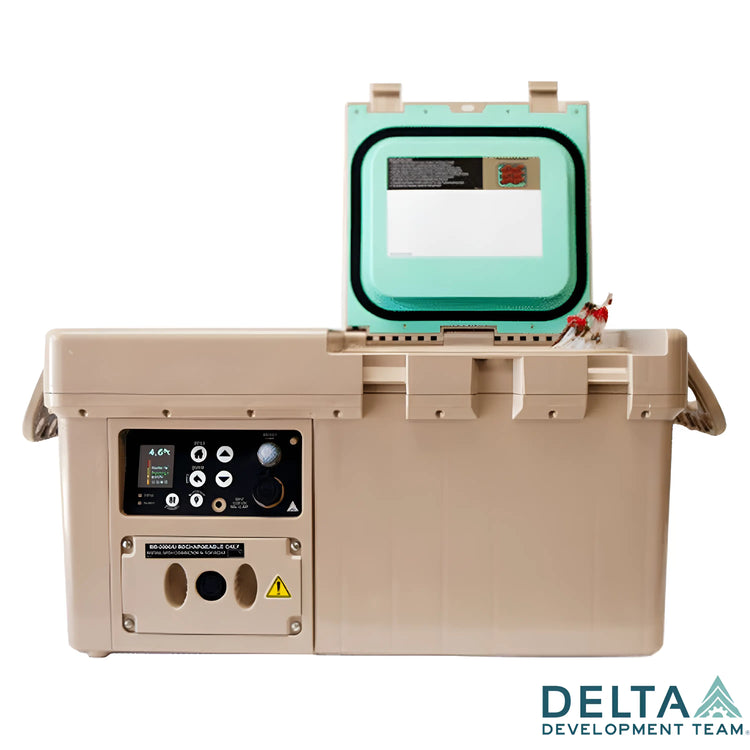

The Delta APRU 6L (Delta part A-000375, NSN 4110-01-702-8523) from Delta Development Team is an autonomous portable refrigeration unit: a battery-powered portable blood refrigerator that holds up to six 500 mL units of blood at 2 to 6 C for up to 95 hours on a single BB-2590/U battery.12 Built for ground EMS, HEMS, military medicine and hospital-to-field transport, it actively heats and cools, logs temperature with NIST-traceable accuracy, and is an FDA-listed Class II device that meets AABB Standards for Blood Banks and Transfusion Services.23 We are an Authorized Delta Development Team Distributor (USA).

Product Highlights:

  • Six units of blood: whole blood, PRBC or plasma in six 500 mL bags, 4.2 L (4.4 qt) compartment2
  • 2 to 6 C blood storage with an internal setpoint of 4.5 C plus or minus 0.8 C12
  • 95-hour battery run time at 24 C (75 F) on one internal BB-2590/U smart battery, so battery swaps are not normally needed2
  • Active heating and cooling from -32 to 50 C (-25 to 122 F) ambient, in any orientation2
  • Charges while it cools: 100 to 240 VAC or 12.0 to 31.0 VDC vehicle power, battery recharges in 4 hours while holding temperature2

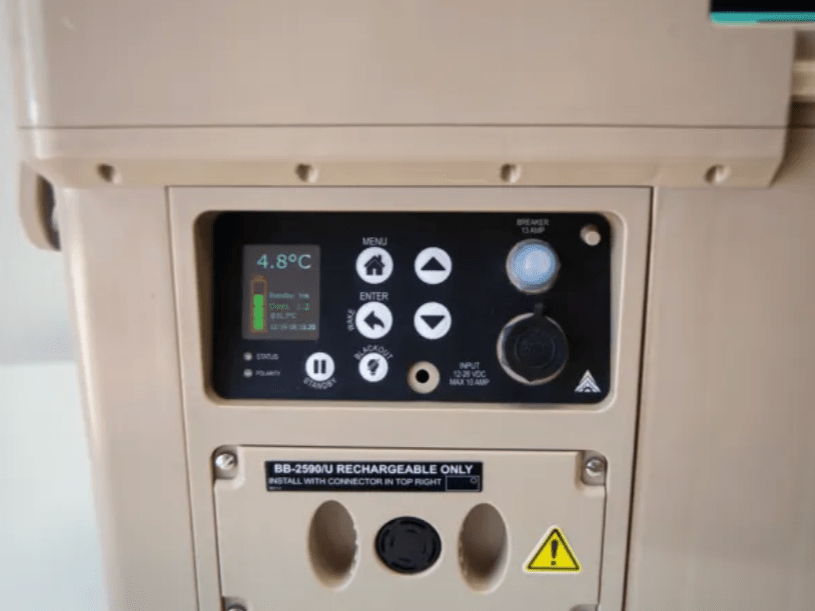

  • Display predicts remaining storage time and records stored temperature for 72 days2
  • Built-in alarms for temperature deviation and power loss, with silent and dark mode for night-vision and tactical use24
  • Bluetooth to the BloodCOMM app for PDF or CSV temperature reports; add BloodCOMM Connect for cloud sync and remote alerts5
  • Rugged and flight ready: IP66 and NEMA 4X, Helicopter Air Ambulance (HAA) FAA qualified, and listed in Army AWR 1930 for UH-60 aircraft2

Specifications:

Manufacturer Delta Development Team
Model APRU 6L (Autonomous Portable Refrigeration Unit)
Delta part number (MPN) A-0003756
NSN 4110-01-702-8523
SKU DD-APRU-6L
Unit capacity Six 500 mL blood bags; 4.2 L (4.4 qt)2
Storage temperature for blood 2 to 6 C (35.6 to 42.8 F); internal setpoint 4.5 C plus or minus 0.8 C12
Battery hold time 95 hours at 24 C (75 F) ambient2
Battery Internal MIL-PRF-32383 BB-2590/U smart battery: APRU 6L BB2590 Battery
Power input 100 to 240 VAC (50/60 Hz) or 12.0 to 31.0 VDC; internal charger, 4-hour recharge
Operating ambient -32 to 50 C (-25 to 122 F) on battery or AC power
Battery charging ambient -10 to 40 C (14 to 104 F)
Storage ambient -32 to 60 C (-25 to 140 F)
Temperature recording Frequency 4 hours; duration 72 days; accuracy plus or minus 1 C, class 2 (k=2); NIST traceable2
Size 19.3 x 10.1 x 10.2 in (49 x 25.7 x 25.9 cm)
Weight 29 lb (13.2 kg) unloaded
Ingress protection IP66 and NEMA 4X waterproof
Safety and EMC IEC 61010-1; UL/IEC 61010-2-11 refrigeration; UL/IEC 61010-2-10 heater; EN 55011 CISPR 11 Class A; MET E115656 (cETLus)2
Regulatory FDA listed, Class II, product code KSE, for use near patient; registration 0086000668090927
Blood bank standard Meets AABB Standards for Blood Banks and Transfusion Services; on the AABB list as APRU 6L-2 (Operator Manual V 2.7)23
Aviation HAA FAA qualified (AC 135-14B sec 5-3.d, 5-5(1)); DO-160G reports; Army AWR 1930 Rev 26 for UH-60L, UH/HH-60M, UH-60V in battery mode2
Connectivity Bluetooth to the BloodCOMM app; cloud via BloodCOMM Connect5
Government buying GSA 47QSWA20D001M; ECAT SPE2DE22DA001; DAPA SP020018H0049; CAGE 84SB51

Delta APRU 6L vs Delta ICE 2L:

Delta ICE 2L Smart Blood Cooler Delta APRU 6L
Type Passive PCM blood cooler Active refrigerator, heats and cools
Capacity 2 units (500 mL) 6 units (500 mL)
Hold time Up to 48 h at 25 C ambient Up to 95 h at 24 C ambient on battery, unlimited on AC or vehicle power
Weight Compact, single-medic carry 29 lb unloaded
Best fit Ground EMS and HEMS units carrying 1 to 2 units Supervisor vehicles, HEMS bases, military, mass casualty and hospital transfers

Related products:

Frequently Asked Questions:

What is the Delta APRU 6L?
APRU stands for Autonomous Portable Refrigeration Unit. The APRU 6L is Delta Development Team's battery-powered portable blood refrigerator that keeps up to six units of blood at 2 to 6 C in the field.1
How many units of blood does the APRU 6L hold?
Six 500 mL blood bags in a 4.2 L (4.4 qt) compartment. Delta's EMS literature describes it as storing 6 units of blood for 5 days.28
What temperature does the APRU keep blood at?
2 to 6 C (35.6 to 42.8 F), with an internal setpoint of 4.5 C plus or minus 0.8 C. That sits inside the AABB 1 to 6 C storage range for red cells and whole blood.129
How long does the APRU 6L battery last?
Up to 95 hours at 24 C (75 F) on one BB-2590/U battery. Hot or cold ambient conditions shorten run time, and the display predicts remaining storage time so crews can plan. A spare APRU 6L BB2590 Battery extends missions.2
Can the APRU charge while it keeps blood cold?
Yes. The internal charger recharges the battery in 4 hours while maintaining temperature, from 100 to 240 VAC or 12.0 to 31.0 VDC vehicle power.2
Can the APRU run on vehicle power?
Yes. Use the APRU 6L Vehicle Mount and Hardwire Cable to hardwire it to 12.4 to 24 VDC with a 20 A inline fuse, or use a 12V cigarette adapter on an auxiliary battery with 12 AWG or larger wiring.1011
Does the APRU heat as well as cool?
Yes. Compartment heating and cooling keep blood in range from -32 to 50 C (-25 to 122 F) ambient, so it works in winter and desert conditions.2
Is the Delta APRU AABB compliant?
Yes. Delta states the APRU meets AABB Standards for Blood Banks and Transfusion Services, and the AABB approved list includes the Delta APRU 6L-2 (Operator Manual V 2.7) under refrigerators.23
Is the APRU FDA approved?
The APRU 6L is an FDA-listed Class II device (product code KSE) made in an FDA-registered facility, labeled for use near patient.27
Is the APRU approved for helicopters?
Yes. It meets FAA Helicopter Air Ambulance equipment requirements (AC 135-14B) with DO-160G reports, and the Army lists it in AWR 1930 Rev 26 for UH-60L, UH/HH-60M and UH-60V in battery mode.2
Where can I find the Delta APRU 6L manual?
Delta provides the APRU 6L Operator Manual through its resource center after a short request form. The resource center also has articles on connectivity, hardwiring, alarms and tilt mode.1213
How does the APRU record and report temperature?

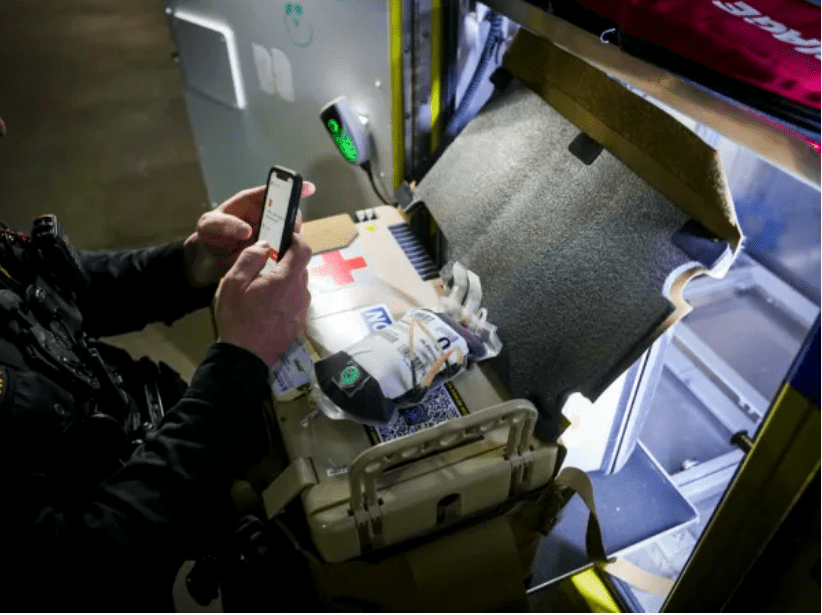

It logs temperature for 72 days with plus or minus 1 C accuracy, NIST traceable. Over Bluetooth, the BloodCOMM app downloads the log and exports PDF or CSV records. BloodCOMM Connect adds automatic cloud backup.25
Does the APRU have WiFi or cellular?
No. The APRU uses Bluetooth only. For cloud monitoring and remote alerts, pair it with BloodCOMM Connect, which uploads status every 15 minutes with a BloodCOMM subscription.5
What alarms does the APRU have?
Alarms alert on temperature deviation and power outage. Alarms can be silenced, and silent and dark mode supports stealth and night-vision operations.24
How do I validate the APRU for my blood program?
AABB expects containers to be validated and temperature to be monitored and recorded. Use the APRU log, a NIST-traceable check such as the Delta Thermal Confirmation Unit (A-002088), and your medical director's validation protocol.914
Is the APRU a blood cooler or a refrigerator?
A refrigerator. The APRU 6L is an electric, battery-powered portable blood refrigerator that actively cools and heats, so it works as a mobile blood bank refrigerator for EMS, flight and military teams rather than a passive blood transport cooler. For a passive option, see the Delta ICE 2L Smart Blood Cooler.215
How much does the Delta APRU 6L cost?
See the current price on this page. Government buyers can also use NSN 4110-01-702-8523, GSA 47QSWA20D001M, ECAT or DAPA, and we can quote agency orders.16
What is the difference between the Delta APRU 6L and the ICE 2L?
The Delta ICE 2L Smart Blood Cooler is a passive PCM cooler for two units. The APRU 6L is an active refrigerator for six units that runs 95 hours on battery and indefinitely on AC or vehicle power. See the comparison table above.216
What accessories are available for the APRU?
References
  1. Delta Development Team. APRU 6L Autonomous Portable Refrigeration Unit. deltadevteam.com/apru-6l
  2. Delta Development Team. APRU 6L specification sheet, military edition (10/07/2024). APRU 6L military spec sheet (PDF)
  3. AABB. Standards-Compliant Approved Products List. AABB approved products list (PDF)
  4. Delta Development Team Resource Center. APRU Alarms Explained. info.deltadevteam.com/apru-alarms-explained
  5. Delta Development Team Resource Center. APRU 6L BloodCOMM Connectivity. info.deltadevteam.com/apru-6l-connectivity
  6. Delta Development Team Online Store. APRU 6L Autonomous Portable Refrigeration Unit (A-000375), NSN 4110-01-702-8523. store.deltadevteam.com
  7. Delta Development Team. Certifications. deltadevteam.com/certifications
  8. Delta Development Team. Prehospital Blood Management System, EMS one-sheet. Delta EMS one-sheet (PDF)
  9. AABB. Standards for Emergency Prehospital and Scheduled Out-of-Hospital Transfusions, 2nd edition (Standards 3.8, 3.8.1, 5.1.9, 5.1.9.1, 5.1.9.3 and Reference Standard 5.1.9A). AABB prehospital standards (PDF)
  10. Delta Development Team Resource Center. APRU Vehicle Hardwire Instructions. info.deltadevteam.com/apru-6l-hardwire-instructions
  11. Delta Development Team Resource Center. APRU Cigarette Adapter Best Practices. info.deltadevteam.com/apru-cigarette-adapter-best-practices
  12. Delta Development Team Resource Center. APRU 6L Operator Manual. info.deltadevteam.com/apru-manual
  13. Delta Development Team Resource Center. APRU 6L articles: manual, connectivity, hardwire, cigarette adapter, tilt mode and alarms. info.deltadevteam.com/apru-6l
  14. Delta Development Team Online Store. Thermal Confirmation Unit, TCU (A-002088), for the Delta ICE-2L or APRU-6L. store.deltadevteam.com
  15. Delta Development Team. APRU 6L specification sheet, EMS edition. APRU 6L EMS spec sheet (PDF)
  16. Delta Development Team. Delta ICE 2L Smart Blood Cooler product page. deltadevteam.com/ice-2l
  17. Delta Development Team Online Store. APRU 6L accessories, parts and consumables. store.deltadevteam.com/brand/apru-6l

Specifications from Delta Development Team documentation. We are an Authorized Delta Development Team Distributor (USA).
