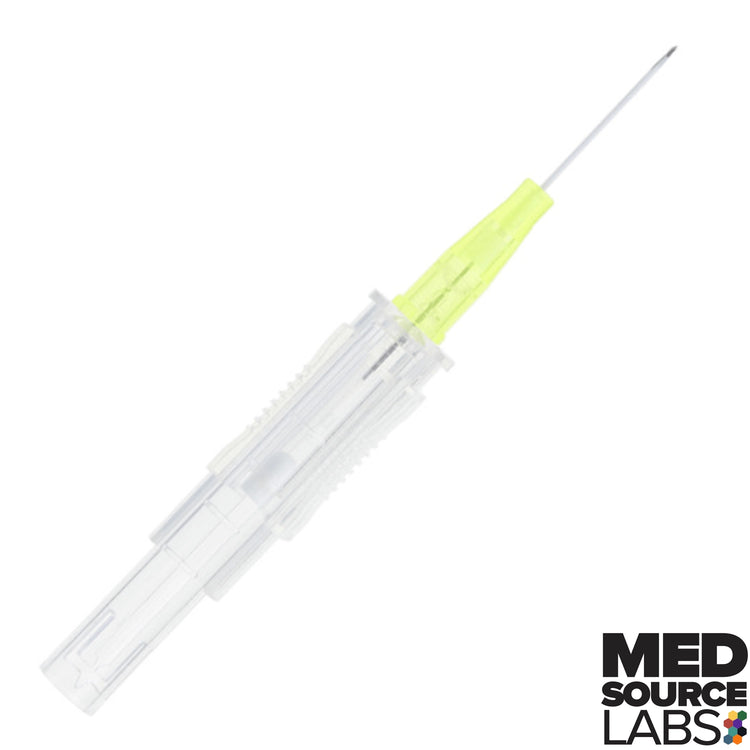

MedSource ClearSafe Comfort BC 24G x 0.75 in IV Catheter, 50/Box
Product Highlights:
- Blood control: Active check valve technology inhibits blood flow when the valve is activated.1
- Needle safety: Slide style retraction pulls the needle fully into the catheter body, with an audible click lock.1
- Gauge and length: 24G x 0.75 in, gravity flow 20 mL/min.1
- Hub color: Color-coded catheter hub: Yellow marks 24G on the IFU legend.2
- Flashback chamber: Allows for clear visual confirmation of successful venipuncture.1
- Materials: PUR catheter, radiopaque, not made with natural rubber latex or DEHP.1
What Is in the Box:
- 50 ClearSafe Comfort BC 24G x 0.75 in safety IV catheters (MS-86224). Each unopened package is sterile, non-toxic and non-pyrogenic.2
- This listing is one box of 50 catheters (50 EA/BX).1
Specifications:
| Manufacturer | MedSource Labs3 |
|---|---|
| Brand | ClearSafe Comfort BC3 |
| Part number (MPN) | MS-862241 |
| Gauge | 24G1 |
| Catheter length | 0.75 in1 |
| Catheter ID | 0.49 mm1 |
| Catheter OD | 0.7 mm1 |
| Gravity flow rate | 20 mL/min1 |
| Hub color | Yellow (ISO color coding)2 |
| Catheter material | PUR, radiopaque1 |
| Needle | Ground stainless steel, triple-facet back cut bevel1 |
| Safety mechanism | Slide style needle retraction1 |
| Hub | Straight hub1 |
| Latex and DEHP | Not made with natural rubber latex; not made with DEHP1 |
| Compliance | Needlestick Safety and Prevention Act (NSPA) of 2000 compliant1 |
| Pack | 50 per box (50 EA/BX)1 |
| Device identifier (box of 50) | 008401554093474 |
| Use | Single use, short-term peripheral use2 |
Size and Compatibility:
| MPN | Gauge | Length | Flow (mL/min) | Hub color |
|---|---|---|---|---|
| MS-86214 | 14G | 1.25 in | 2971 | orange2 |
| MS-86216 | 16G | 1.25 in | 2201 | gray2 |
| MS-86218 | 18G | 1.25 in | 941 | green2 |
| MS-86220 | 20G | 1.25 in | 611 | pink2 |
| MS-86222 | 22G | 1 in | 361 | blue2 |
| MS-86224 | 24G | 0.75 in | 201 | yellow (this item)2 |
Only MS-86224 is sold on this page; the other gauges are listed for size comparison.1
Related Products:
- MedSource ClearSafe Comfort BC 22G x 1 in IV Catheter, 50/Box
- MedSource TrueSafe Comfort 24G x 0.75 in IV Catheter, 50/Box
- MedSource IV Start Kit with Site-Loc Dressing, MS-80063
- All IV catheters
Product Guides and Documents:
- ClearSafe Comfort BC specification and flow rate sheet, Rev.06 (PDF) (medsourcelabs.com)
- ClearSafe Comfort Blood Control Instructions for Use (PDF) (medsourcelabs.com)
- ClearSafe Comfort BC product page (medsourcelabs.com)
- AccessGUDID record 00840155409347 (box of 50) (accessgudid.nlm.nih.gov)
Frequently Asked Questions:
What is the MedSource MS-86224?
It is the ClearSafe Comfort BC 24G x 0.75 in slide style safety IV catheter with blood control, in a box of 50.1
What is the flow rate of the 24G catheter?
The manufacturer lists a gravity flow rate of 20 mL/min for the 24G x 0.75 in size.1
What color is the 24G IV catheter hub?
The hub is color-coded yellow for 24G; the IFU legend lists ORANGE 14G, GREY 16G, GREEN 18G, PINK 20G, BLUE 22G and YELLOW 24G.2
How long is the 24G catheter?
The catheter is 0.75 in long, with an ID of 0.49 mm and an OD of 0.7 mm.1
How does blood control work on this 24G catheter?
An active check valve inhibits blood flow when the valve is activated.1
How does the needle safety mechanism work?
The slide retracts the needle fully into the catheter body, and an audible click confirms the needle is encapsulated.1
What is this 24G IV catheter indicated for?
The IFU indicates it to sample blood or administer fluids intravenously, and it is intended for short-term use.2
How many 24G IV catheters are in a box?
Each box holds 50 catheters; this listing is one box of 50.1
Is this 24G IV cannula latex free?
It is not made with natural rubber latex and not made with DEHP.1
Can I buy a single 24G catheter?
This store sells the ClearSafe Comfort BC 24G by the box of 50 only; the old single catheter page redirects here.1
Manufacturer Sources
- MedSource Labs. ClearSafe Comfort BC Slide Style Safety IV Catheter, specification and flow rate sheet, Rev.06 (PDF) (accessed 2026-11-01). medsourcelabs.com.
- MedSource Labs. ClearSafe Comfort Blood Control Safety I.V. Catheter, Instructions for Use, IFU MS-86222 (PDF) (accessed 2026-11-01). medsourcelabs.com.
- MedSource Labs. ClearSafe Comfort BC Safety IV Catheter, product page (accessed 2026-11-01). medsourcelabs.com.
- U.S. National Library of Medicine, AccessGUDID. Device record 00840155409347, MS-86224, ClearSafe Comfort 24G x 0.75 in, box of 50 (accessed 2026-11-12). accessgudid.nlm.nih.gov.
Rx Only. Single use. Read the Instructions for Use before use; never reinsert the introducer needle into the catheter, and discard the needle into an approved sharps container.
