Cables and Sensors SpO2 Cable, Masimo 2056 Compatible, 10 ft

This item requires a clinical attestation, confirmed in your cart.

SKU: CAS-10225

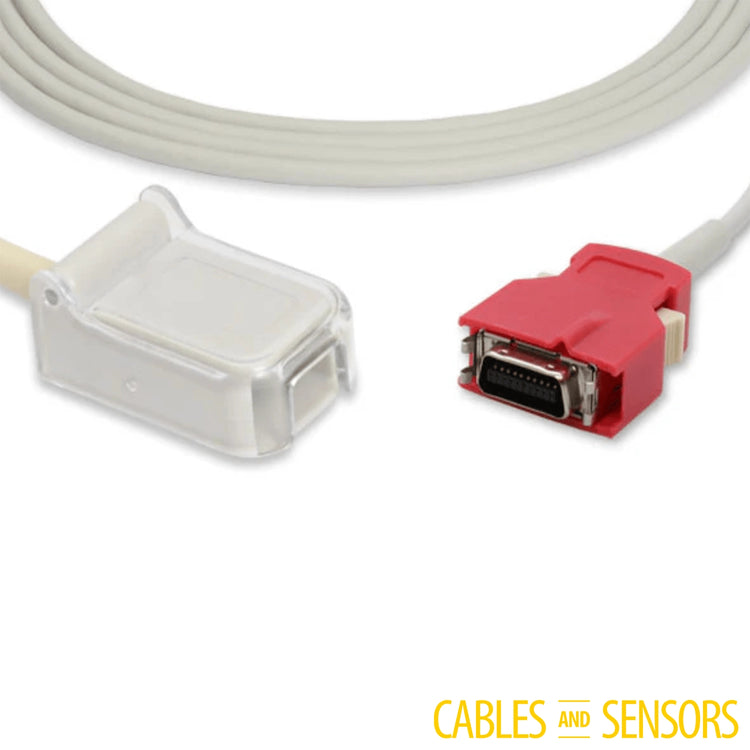

The Cables and Sensors 10225 is a 10 ft SpO2 adapter cable compatible with Masimo 2056.1 It connects a SpO2 sensor with a 9-pin connector to a monitor with a red Masimo 20-pin port.1 It is a third-party cable, not a Masimo product. We supply it with other pulse oximetry cables and probes.

Product Highlights:

  • Replaces Masimo 2056: Also cross-referenced to Physio-Control 11996-000324, Zoll 8000-0331, GE 2059006-001 and Draeger MP03031.1
  • 10 ft reach: Gray 5 mm cable, 10 ft total.1
  • Red 20-pin monitor end: Masimo red 20-pin connector to a female 9-pin D-sub, triple keyed.1
  • Monitor fit: Masimo Rad-5, Rad-57, Rad-8, Radical-7, LIFEPAK 15 and Zoll X Series among others.1
  • Latex-free: Latex-free and supplied non-sterile.1

What Is in the Box:

  • 1 Cables and Sensors 10225 SpO2 adapter cable, 10 ft.1

Specifications:

Manufacturer Cables and Sensors1
Part number 102251
Type SpO2 adapter cable1
Replaces Masimo 2056; Physio-Control 11996-000324; Zoll 8000-0331; GE 2059006-001; Draeger MP030311
SpO2 technology Masimo1
Monitor connector Masimo, red, 20-pin1
Sensor connector Female 9-pin D-sub, triple keyed1
Length 10 ft1
Latex-free Yes1
Sterile No1
Pack 1 each

Related Products:

Frequently Asked Questions:

What Masimo cable does the 10225 replace (10225)?

Masimo 2056. It is also cross-referenced to Physio-Control 11996-000324, Zoll 8000-0331, GE 2059006-001 and Draeger MP03031.1

Is this a genuine Masimo cable (10225)?

No. It is a Cables and Sensors cable made to replace Masimo 2056. We also stock the genuine Masimo 2056.1

How long is the cable (10225)?

10 ft.1

Does it fit a LIFEPAK 15 or Zoll X Series (10225)?

Yes. Physio-Control LIFEPAK 15 and Zoll X Series appear in its fit list with Masimo Rad and Radical monitors.1

What connectors does it have (10225)?

A red Masimo 20-pin connector at the monitor and a female 9-pin D-sub, triple keyed, at the sensor.1

Is a shorter version available (10225)?

Yes. Part 10223 is the 3.5 ft version, compatible with Masimo 2055.2

Manufacturer Sources
  1. Cables and Sensors. Masimo Compatible SpO2 Adapter Cable, 10 ft, part number 10225 (accessed 2026-11-07). cablesandsensors.com.
  2. Cables and Sensors. Masimo Compatible SpO2 Adapter Cable, 3.5 ft, part number 10223 (accessed 2026-11-07). cablesandsensors.com.

Use only as directed in the Cables and Sensors labeling and the monitor maker instructions.1
