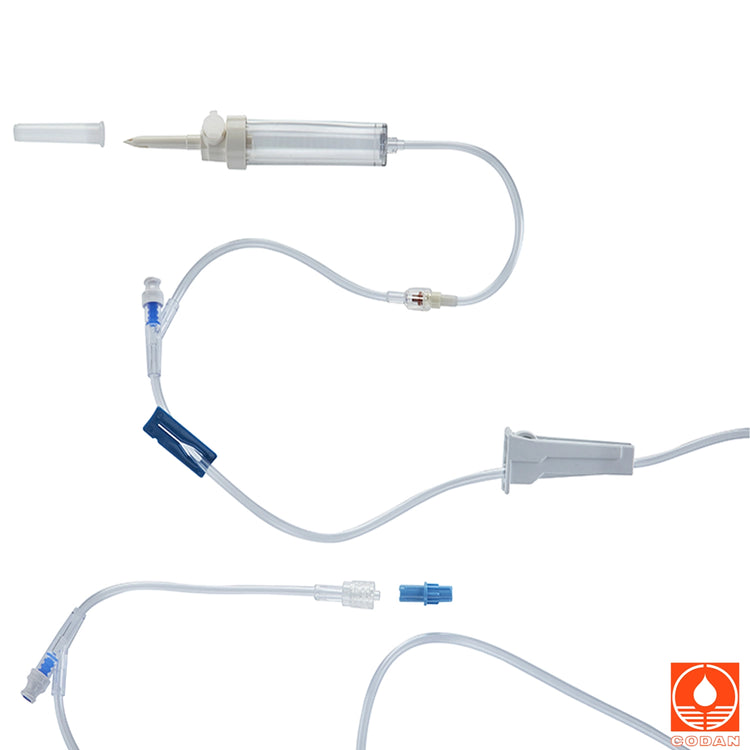

Codan Walrus 10 Drop Anesthesia IV Set C416-W full set layout
Codan Walrus 10 Drop Anesthesia IV Set, C416-W set layout drawing
Codan Walrus 10 Drop Anesthesia IV Set C416-W full set layout
Codan Walrus 10 Drop Anesthesia IV Set, C416-W set layout drawing

Codan Walrus 10 Drop Anesthesia IV Set, C416-W, Case of 50

SKU: CD-C416-W

Codan

The Codan C416-W Walrus IV administration set is built for anesthesia care, with a 10 drop vented chamber, a CODAN check valve, two needle-free Y-sites, a slide clamp, a roller clamp and a male Luer-Lock.1 FDA GUDID lists it as a Walrus anesthesia IV set.2 We supply it with our IV tubing.

Product Highlights:

  • 10 drop vented chamber: 10 drop (10d) vented drip chamber.1
  • CODAN check valve: Check valve on the line.1
  • Two needle-free Y-sites: 2 needle-free Y-sites.1
  • 102 in set: Approximate length 102 in; approximate priming volume 22 mL.1
  • Anesthesia care: CODAN describes it as made for anesthesia care needs.3
  • Sterile, no natural rubber latex: GUDID lists it as sterile and single use, not made with natural rubber latex.2

What Is in the Box:

  • 50 Codan C416-W Walrus 10 drop IV administration sets (1 case).1

Specifications:

Labeler (GUDID) Codan US Corporation2
Brand CODAN Walrus1
Part number C416-W1
CODAN item number 43.80551
Drip chamber 10 drop (10d), vented1
Valve CODAN check valve1
Injection sites 2 needle-free Y-sites1
Clamps Slide clamp; roller clamp1
Other components Male Luer-Lock1
Approx. length 102 in1
Approx. priming volume 22 mL1
Sterile Yes2
Use Single use2
Latex Not made with natural rubber latex (GUDID labeling)2
Device type (GMDN) Basic intravenous administration set, noninvasive2
FDA product code FPA, Set, Administration, Intravascular2
CODAN case quantity 501
Device identifier (GUDID) 108131530236072

Size and Compatibility:

CODAN makes these two IV sets with different drop factors.1

C416-W 10 drop, vented, 102 in, 22 mL priming, check valve, 2 needle-free Y-sites1
B418N 60 drop, non-vented, 90 in, 21 mL priming1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

How does the C416-W differ from a 60 drop set like the B418N?

C416-W has a 10 drop vented chamber, a CODAN check valve and two needle-free Y-sites; B418N has a 60 drop non-vented chamber and a 15 micron fluid filter.1

What is the drop factor of the C416-W?

CODAN lists a 10 drop (10d) vented chamber.1

Does the C416-W have a check valve?

Yes. CODAN lists a CODAN check valve on the set.1

How many injection sites does the C416-W have?

Two needle-free Y-sites.1

How long is the C416-W IV tubing and how many mL does it hold?

CODAN lists an approximate length of 102 in and an approximate priming volume of 22 mL.1

What is the C416-W designed for?

CODAN describes the Walrus C416-W as a combination of safety and convenience for anesthesia care needs.3 GUDID lists it as an anesthesia IV set.2

What is an IV administration set like the C416-W?

GUDID classes C416-W as a basic intravenous administration set, which GMDN defines as devices that conduct fluids from an IV bag or bottle to a peripheral venous cannula during gravity or pump administration.2

Is the C416-W sterile and free of natural rubber latex?

Yes. GUDID lists it as sterile and single use, and its labeling states it is not made with natural rubber latex.2

Manufacturer Sources
  1. CODAN US Corporation. Medical Device Product Catalog (accessed 2026-11-07). codanusa.com.
  2. U.S. FDA AccessGUDID. Walrus C 416-W, Anesthesia IV Set, device identifier 10813153023607 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
  3. CODAN US Corporation. CODAN Walrus IV Administration Set C416-W (accessed 2026-11-07). codanusa.com.

Specifications are from CODAN and FDA GUDID records. Use only as directed in CODAN labeling.1
