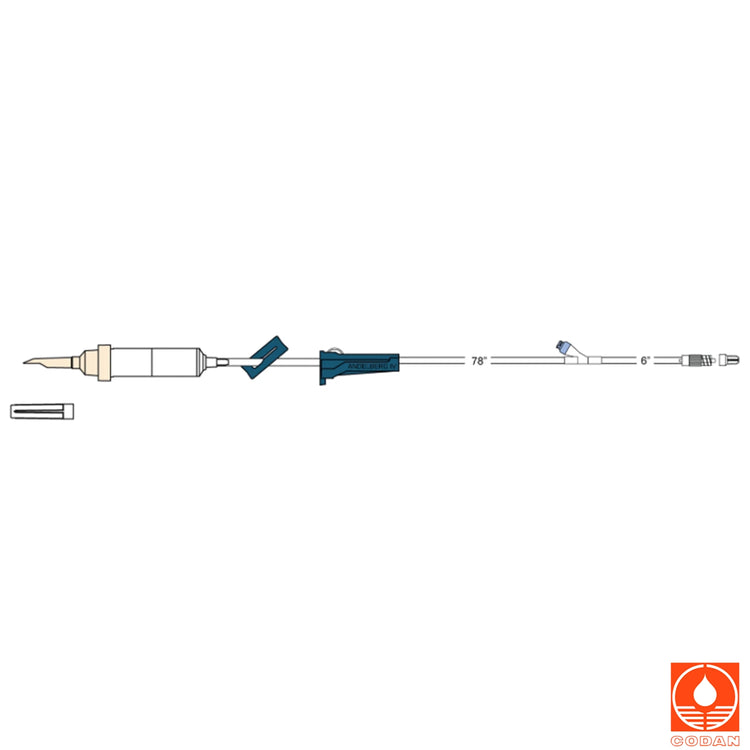

Codan 60 Drop IV Administration Set B418N set layout drawing

Codan 60 Drop IV Administration Set, B418N, Case of 50

SKU: CD-B418N

Codan

The Codan B418N is a 60 drop IV administration set with a non-vented chamber, a 15 micron fluid filter, a slide clamp, a roller clamp, a needle-free Y-site, a spin-lock and a CODAN FlowStop protection cap.1 FDA GUDID lists it as a non-vented bent stem 60 drop IV set with SWAN-LOCK needle-free injection.2 We supply it with our IV tubing.

Product Highlights:

  • 60 drop chamber: 60 drop (60d) non-vented drip chamber.1
  • 15 micron fluid filter: 15 micron fluid filter.1
  • Needle-free Y-site: Needle-free Y-site.1 GUDID lists SWAN-LOCK needle-free injection.2
  • 90 in set: Approximate length 90 in; approximate priming volume 21 mL.1
  • Two clamps: Slide clamp and roller clamp, spin-lock and FlowStop protection cap.1
  • Sterile, no natural rubber latex: GUDID lists it as sterile and single use, not made with natural rubber latex.2

What Is in the Box:

  • 50 Codan B418N 60 drop IV administration sets (1 case).1

Specifications:

Labeler (GUDID) Codan US Corporation2
Brand CODAN1
Part number B418N1
CODAN item number 37.74181
Drip chamber 60 drop (60d), non-vented1
Filter 15 micron fluid filter1
Injection site Needle-free Y-site1
GUDID description Non-vented bent stem 60 drop IV set with SWAN-LOCK needle-free injection and spin-lock2
Clamps Slide clamp; roller clamp1
Other components Spin-lock; CODAN FlowStop protection cap1
Approx. length 90 in1
Approx. priming volume 21 mL1
Sterile Yes2
Use Single use2
Latex Not made with natural rubber latex (GUDID labeling)2
Device type (GMDN) Basic intravenous administration set, noninvasive2
FDA product code FPA, Set, Administration, Intravascular2
CODAN case quantity 501
Device identifier (GUDID) 108131530247342

Size and Compatibility:

CODAN makes these two IV sets with different drop factors.1

B418N 60 drop, non-vented, 90 in, 21 mL priming1
C416-W 10 drop, vented, 102 in, 22 mL priming, check valve, 2 needle-free Y-sites1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

Is the B418N a 15 or 60 drop set?

B418N is a 60 drop set: CODAN lists a 60d non-vented drip chamber and GUDID names it a 60 drop IV set.12

What is the drop factor of the B418N?

CODAN lists a 60 drop (60d) chamber.1

What is the difference between the B418N and the C416-W?

B418N has a 60 drop non-vented chamber; C416-W has a 10 drop vented chamber, a check valve and two needle-free Y-sites.1

How long is the B418N IV tubing and how many mL does it hold?

CODAN lists an approximate length of 90 in and an approximate priming volume of 21 mL.1

Is the B418N vented or non-vented?

Non-vented. CODAN lists a 60d non-vented chamber.1

Does the B418N have a filter?

Yes. CODAN lists a 15 micron fluid filter.1

Is the B418N needle-free?

Yes. It has a needle-free Y-site,1 and GUDID lists SWAN-LOCK needle-free injection.2

What is an IV administration set like the B418N?

GUDID classes B418N as a basic intravenous administration set, which GMDN defines as devices that conduct fluids from an IV bag or bottle to a peripheral venous cannula during gravity or pump administration.2

Is the B418N sterile and free of natural rubber latex?

Yes. GUDID lists it as sterile and single use, and its labeling states it is not made with natural rubber latex.2

Manufacturer Sources
  1. CODAN US Corporation. Medical Device Product Catalog (accessed 2026-11-07). codanusa.com.
  2. U.S. FDA AccessGUDID. Codan B 418N, Non-Vented Bent Stem 60 Drop IV Set with Swan-Lock Needle-Free Injection and Spinlock, device identifier 10813153024734 (accessed 2026-11-07). accessgudid.nlm.nih.gov.

Specifications are from CODAN and FDA GUDID records. Use only as directed in CODAN labeling.1
