Codan BC559 trifurcated mini bore extension set with three female Luer-Locks and pinch clamps

Codan BC559 Trifurcated Mini Bore Extension Set, 50 per box

SKU: CD-BC559

Codan

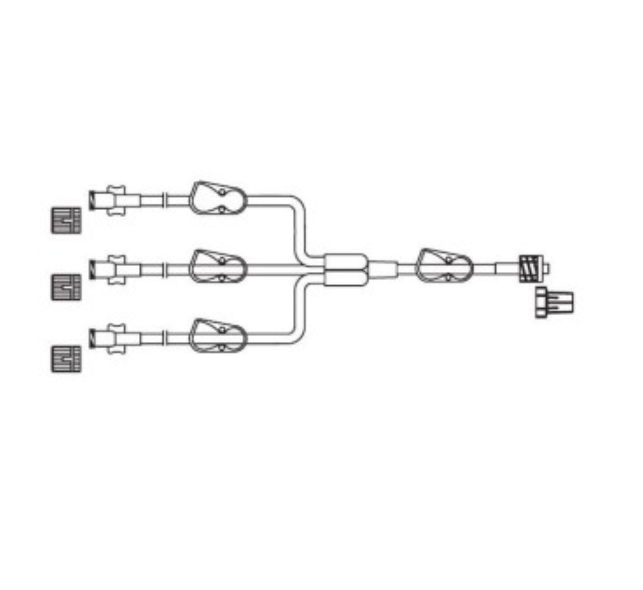

The Codan BC559 is a trifurcated mini bore extension set with three Female Luer-Locks, a Male Luer-Lock, four pinch clamps and a spin-lock, listed by CODAN at about 7 in and 0.5 mL priming volume, Non-DEHP, 50 per case.1 FDA GUDID lists BC 559 as a sterile, single-use trifurcated extension set, not made with natural rubber latex.2

Product Highlights:

  • Trifurcated mini bore: Official catalog type, not a generic single-lumen extension set.1
  • Connectors: Three Female Luer-Locks, a Male Luer-Lock, and a spin-lock.1
  • Four pinch clamps: Official catalog wording.1
  • 7 in, 0.5 mL: Approximate length 7 in, approximate priming volume 0.5 mL.1
  • Sterile, single use: Listed in FDA GUDID as sterile and single use, and not made with natural rubber latex.2

Specifications:

Labeler (GUDID) Codan US Corporation2
Catalog number BC5591
CODAN item number 72.71201
Type Trifurcated mini bore extension set1
Connectors Three Female Luer-Locks, Male Luer-Lock, spin-lock1
Clamps Four pinch clamps1
Approx. length 7 in1
Approx. priming volume 0.5 mL1
Materials (catalog) Non-DEHP1
CODAN case quantity 501
Sterile Yes2
Use Single use2
Latex Not made with natural rubber latex (GUDID label)2
Device type (GMDN) Intravenous administration tubing extension set2
FDA product code FPA, Set, Administration, Intravascular2
Device identifier (GUDID) 108978910016912

Size and Compatibility:

Female Luer-Locks on the three legs and a Male Luer-Lock with a spin-lock, per CODAN.1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

What is a microbore extension set?

CODAN lists the BC559 as a trifurcated mini bore extension set, about 7 in long with an approximate priming volume of 0.5 mL. FDA GUDID classes it as an intravenous administration tubing extension set.12

What connectors does the BC559 have?

Three Female Luer-Locks, a Male Luer-Lock, and a spin-lock, with four pinch clamps.1

Is the BC559 sterile?

Yes. FDA GUDID lists BC 559 as sterile and single use.2

Does it contain latex?

Its GUDID record is labeled as not made with natural rubber latex.2

When does this item ship?

Orders received and prepaid before 12:00 PM Arizona time (MST) typically leave the same business day when the item is available. Other orders placed Monday to Friday usually leave in 1 to 2 business days. Shipping cost is calculated at checkout. We ship by UPS to the 50 United States and do not ship directly internationally.3

Manufacturer Sources
  1. CODAN US Corporation. Medical Device Product Catalog (accessed 2026-11-10). codanusa.com.
  2. U.S. FDA AccessGUDID. Codan BC 559, Trifurcated Extension Set, device identifier 10897891001691 (accessed 2026-11-10). accessgudid.nlm.nih.gov.
  3. Shipping policy, last updated June 22, 2026 (accessed 2026-11-10). Shipping policy page.

Specifications are from CODAN and FDA GUDID records. Use only as directed in CODAN labeling.1
