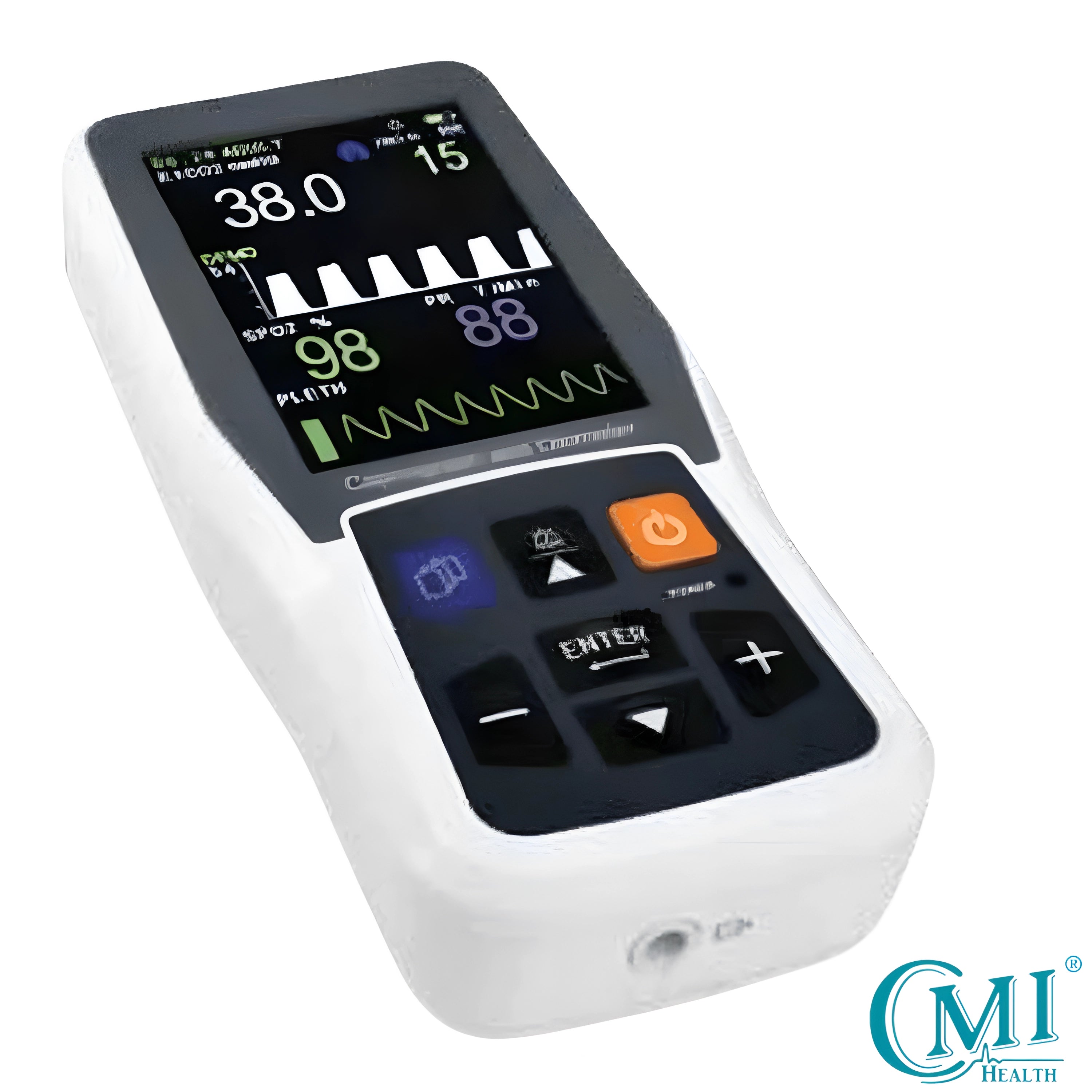

CMI PC-900B Handheld Capnograph and Oximeter

About:

Capnographs are used to measure the levels of carbon dioxide (CO2) exhaled by a patient over time (EtCO2), respiration rate, pulse, and saturation of Sp02.

This data is critical for determining the appropriate type of medical care needed based on the amount of CO2 observed and the regularity or irregularity of that CO2.

Our user-friendly handheld capnograph pulse oximeter is portable, elegantly designed, and multi-functional. Instead of needing two separate devices for oximetry and capnography, you can collect all the data you need from one device.

What comes in the Box:

• Device
• 1)Main Set

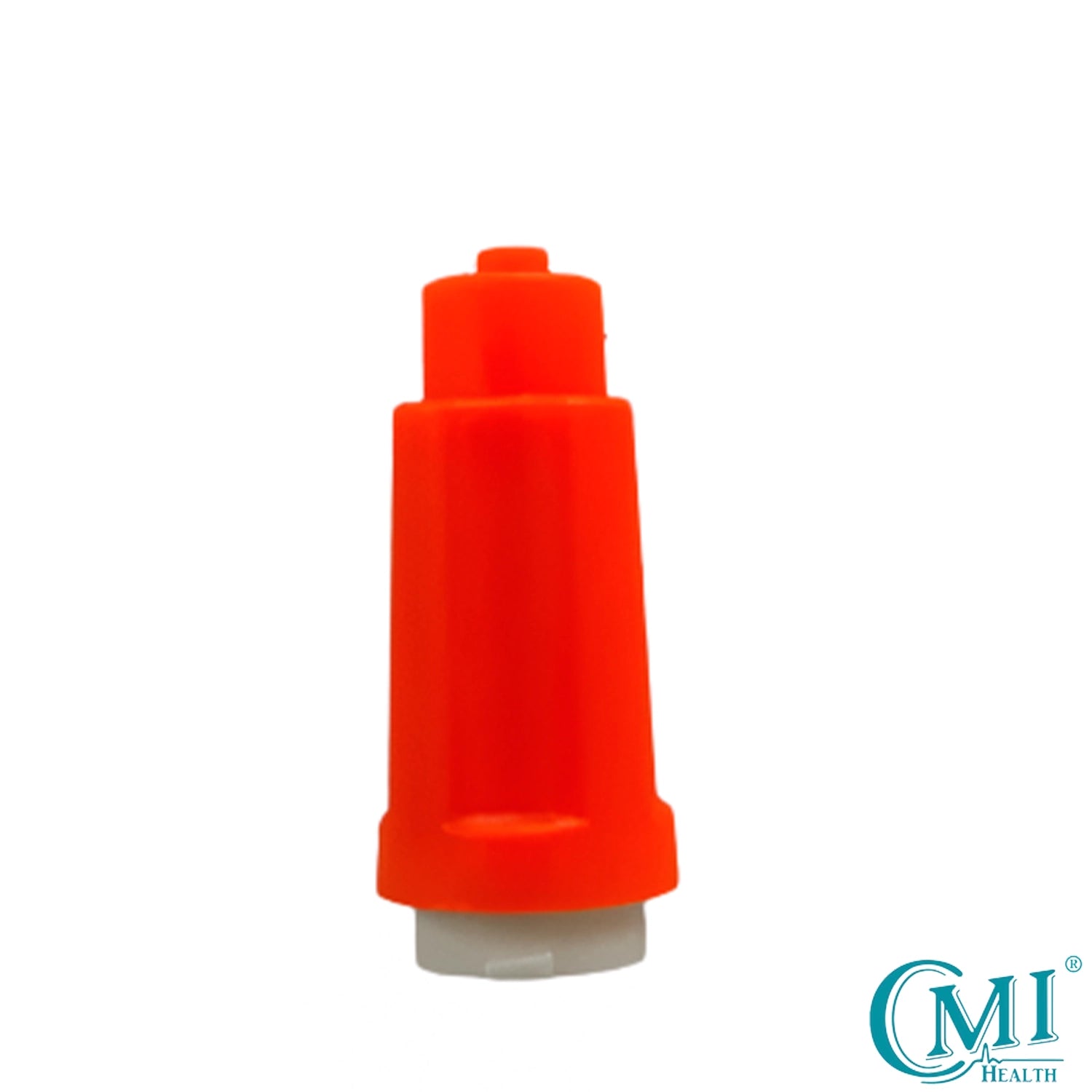

• 6)Water Trap/Filters
• 1) Sampling line
• 1) Airway adapter
• 1) USB cable
• 1) AC/DC adapter (US standard)
• 1) Nasal CO2 Sampling Cannula
• 1) SpO2 probe
• 1) Silicon cover
• 1) canvas bag
• 1) support base
• 1) PC-900B Manual

Specifications:

• Device Dimension: 72mm(W) x 155mm(H) x40mm(D)
• Concentration of EtCO2 Range: 0.0-19.7% (V/V), 0-150mmHg,or 0-20kPa, accuracy: deviation˘±2mmHg when EtCO2 concentration in 0
• Total System response time < 1second
• Respiration rate range: 3 ~150 times/min, deviation: the bigger of ±1% or ±1bpm
• Pulse range: 30 times/min~250times/min, Deviation: when 30times/min~40times/min, ±2times/min (absolute value); when 41times/min~250times/min, ±5%(relative value)
