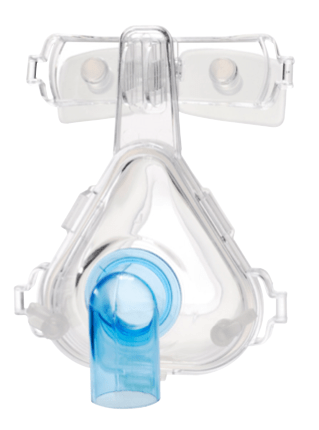

Pulmodyne BiTrac NIV Nasal Mask, Standard Elbow 22mm Female
The Pulmodyne BiTrac NIV Nasal Mask is an adult nasal mask with a 22mm female standard elbow, silicone forehead pad, OmniClip and reusable head strap.1 It is used with a positive pressure air source, CPAP or bilevel equipment.2 Sold in Adult Small, Medium, Large and XL.1
Product Highlights:
- Standard elbow: 22mm female1
- No integral leak port: Use the equipment maker's recommended exhalation port2
- OmniClip: Adjustable forehead piece reduces pressure on the bridge of the nose1
- Four sizes: Adult Small, Medium, Large and XL1
Sizes and Part Numbers:
| Part number | Size | Box qty |
|---|---|---|
| 313-9013 | Adult Small | 10 |
| 313-9014 | Adult Medium | 10 |
| 313-9015 | Adult Large | 10 |
| 313-9016 | Adult XL | 10 |
Source: part list1. Catalog part numbers end in W (for example 313-9015W). Single masks: 313-9013ea, 313-9014ea, 313-9015ea.
Related Products:
- BiTrac NIV Nasal Mask, Small, 10/bx, 313-9013
- BiTrac NIV Nasal Mask, Medium, 10/bx, 313-9014
- BiTrac NIV Nasal Mask, Large, 10/bx, 313-9015
- BiTrac NIV Nasal Mask, XL, 10/bx, 313-9016
- Ventilator Masks collection
Product Guides and Documents:
Frequently Asked Questions:
What sizes does the BiTrac NIV nasal mask come in?
Adult Small, Medium, Large and XL (313-9013 to 313-9016), 10 per box. Small, Medium and Large also come as single masks.1
Does the nasal mask have an exhalation port?
No. It has no integral leak port, so a separate exhalation device must be part of the circuit. Use the equipment maker's recommended exhalation port.2
What is a nasal mask used for?
It is used with a positive pressure air source, CPAP or bilevel equipment, and has the same indications for use as the equipment it is attached to.2
Which circuit goes with this elbow?
Pulmodyne's FAQ says standard elbows go with dual limb circuits, but a nasal mask with a standard elbow can be used with a single limb circuit because the patient can breathe through the mouth.4
What does the OmniClip do?
It is an adjustable forehead piece that moves the mask in and out or up and down, and it reduces pressure on the bridge of the nose.1
What if the mask irritates the skin?
The IFU says irritation may come from too much pressure or a skin reaction. Loosen the head strap or try another mask or forehead pad size.2
Manufacturer Sources
- Pulmodyne. BiTrac NIV mask catalog, part lists (accessed 2026-11-02). pulmodyne.com.
- Pulmodyne. Instructions for Use 7762, BiTrac Nasal Mask with Standard Elbow 22mm Female (accessed 2026-11-02). pulmodyne.com.
- Pulmodyne. BiTrac Nasal product page (accessed 2026-11-02). pulmodyne.com.
- Pulmodyne. BiTrac NIV FAQ (accessed 2026-11-02). pulmodyne.com.
Pick a size above to see each mask's full specifications, pack and documents.2
