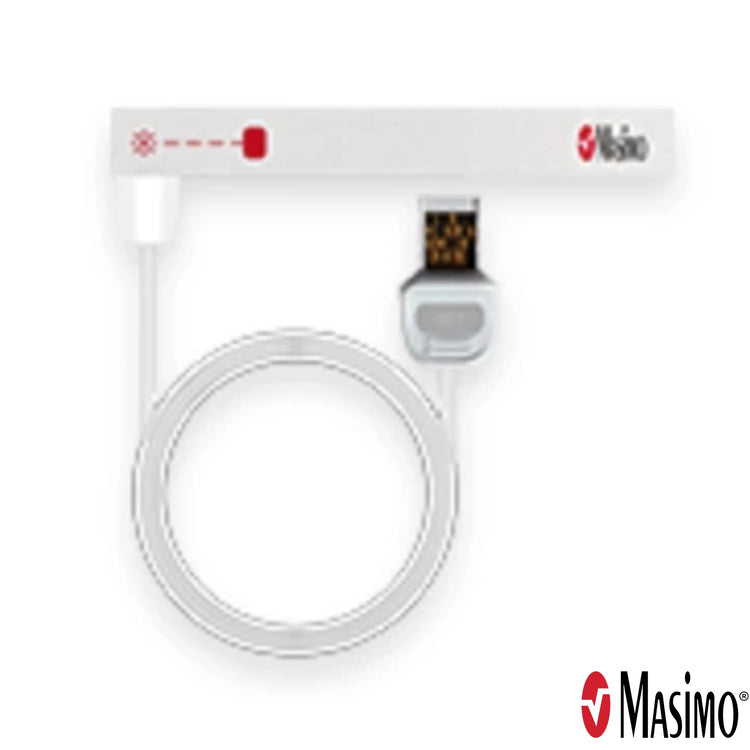

The Masimo RD SET NeoPt CS-2 Adhesive Sensor (Part #4474) is a single-patient-use disposable SpO2 sensor designed for preterm neonatal patients weighing less than 1 kg. Powered by Masimo SET (Signal Extraction Technology), it provides continuous noninvasive monitoring of arterial oxygen saturation (SpO2) and pulse rate through motion and low perfusion conditions. The CS-2 features a 1.5-foot cable and RD SET connector. Specs snapshot: 20 sensors per box, adhesive application, latex free, non-sterile.
Monitoring preterm neonates presents challenges that standard sensors cannot address. Extremely low birth weight, translucent skin, weak peripheral perfusion, and involuntary movement contribute to unreliable readings from conventional pulse oximetry. The RD SET NeoPt uses Masimo SET Measure-through Motion and Low Perfusion technology with parallel signal processing engines that separate the true arterial signal from venous noise and motion artifact. In the NICU, inaccurate SpO2 readings can lead to inappropriate oxygen supplementation and increased risk of retinopathy of prematurity. The sensor's low-profile components conform to preterm foot or hand anatomy, and printed application graphics assist with proper emitter-to-detector alignment.
The preferred application site is the lateral aspect of the preterm neonate's foot, with the palm and back of the hand as an alternative. Direct the sensor cable toward the ankle or wrist, and use the adhesive foam wrap to secure the sensor while maintaining emitter-to-detector alignment. The sensor is compatible with any device containing Masimo SET technology or licensed to use RD SET sensors. A separate RD SET patient cable is required.
The RD SET NeoPt CS-2 uses a streamlined adhesive design with reduced packaging compared to traditional cable-based sensors, lowering storage footprint and waste. The 1.5-foot cable minimizes excess cabling around the isolette or radiant warmer. Key specifications:
Note: RD SET patient cable sold separately. Verify compatibility with your monitoring device before ordering.
The RD SET NeoPt sensor is designed specifically for preterm neonates weighing less than 1 kg. For neonates weighing less than 3 kg or adults over 40 kg, the RD SET Neo sensor is the appropriate choice. For infants 3–10 kg, use the RD SET Inf sensor.
The CS designation refers to cable length. The CS-2 features a 1.5-foot cable, well suited for bedside NICU monitoring where shorter runs reduce clutter around the isolette or warmer. The CS-1 and CS-3 offer different lengths for varying clinical setups.
Yes. The sensor connects to an RD SET patient cable, which then connects to the pulse oximetry monitor. The patient cable is a separate, reusable purchase. Verify monitor, cable, and sensor compatibility before use.
Yes. The RD SET NeoPt CS-2 is not made with natural rubber latex, making it appropriate for use on patients and by clinicians with latex sensitivities.
The adhesive stickiness can be reduced by daubing the adhesive areas with a cotton ball or gauze before application. Apply the sensor around the lateral aspect of the foot with the cable directed toward the ankle. The sensor may be reapplied to the same patient if the emitter and detector windows are clear and the adhesive still adheres to the skin.
The RD SET NeoPt CS-2 is compatible with any pulse oximetry device containing Masimo SET technology or licensed to use RD SET series sensors. This includes monitors from multiple manufacturers that have integrated Masimo SET oximetry. Each device manufacturer determines compatibility with specific sensor models. Check with your monitor manufacturer or visit Masimo.com for compatibility details.
Check the site frequently or per clinical protocol for adequate adhesion, circulation, skin integrity, and correct optical alignment. For poorly perfused patients, assess as frequently as every hour and reposition the sensor if there are signs of tissue ischemia.
