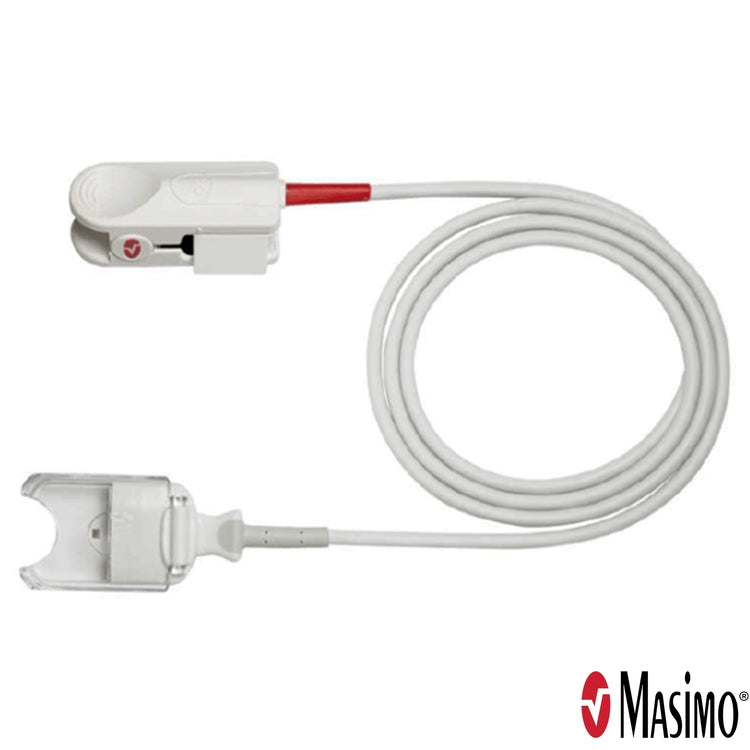

Masimo 2696 Rainbow DCI-dc-3, 3 ft Adult SpO2 Sensor
$620.00
SKU:
MAS-2696
The Masimo 2696 rainbow® is a reusable Pulse CO-Oximetry sensor that measures SpO2, SpCO, SpMet from one sensor for adult (>30 kg) patients. Designed for use with the Rad-57 and other rainbow SET devices.
Product Highlights
- Multi-parameter measurement: SpO2, SpCO, SpMet via Masimo rainbow Pulse CO-Oximetry®
- Reusable design for adult (>30 kg) patients
- 3ft cable
- Requires a rainbow® RC patient cable (20-pin)
- Not made with natural rubber latex
Parameters Measured
SpO2SpCOSpMetPulse Rate (PR)Perfusion Index (Pi)
OEM Cross Reference
| Manufacturer | Part Number |
|---|---|
| Masimo | 2696 |
| Stryker / Physio-Control | 11171-000049 |
| Zoll | 8000-000371 |
Specifications & Compatibility
| Sensor Type | Reusable rainbow® |
|---|---|
| Patient Weight | Adult (>30 kg) |
| Cable Length | 3ft |
| Parameters | SpO2, SpCO, SpMet, PR, Pi |
| Distal Connector | Rainbow (20-pin) |
| Packaging | 1/box, non-sterile |
| Latex | Not made with natural rubber latex |
| Technology | Masimo rainbow SET® |
| Required Rainbow Patient Cables | 2405 Rainbow RC-1 Patient Cable (1 ft) 2406 Rainbow RC-4 Patient Cable (4 ft) 2404 Rainbow RC-12 Patient Cable (12 ft) 3345 Rainbow Patient Cable (10 ft) 4078 Rainbow M20 Patient Cable (12 ft) 4481 Kevlar RC-4 EMS Patient Cable 4485 Rainbow RC25-4RA Kevlar Patient Cable 4798 Kevlar Patient Extension Cable |
| Compatible Masimo Devices | 3734 Rad-57 Kit with SpCO 3735 Rad-57 Kit with SpCO (Adult + Pediatric Probe) 3736 Rad-57 Kit with SpCO and SpMet 3737 Rad-57 Kit with SpMet 9216 Rad-57 Configurable |
Who Uses This
Ground & Flight EMSRuggedized for ambulance bags and rotor-wing transport. Standard on paramedic and critical-care transport rigs.
Fire-Based EMSFast setup for first-arriving engines and squad units. Works in strobe-light and sunlight conditions typical of scene work.
Hospital & EDSpot-check and continuous monitoring in emergency departments, ICUs, and procedural areas.
Dental, Clinic & Urgent CareConscious sedation monitoring, pre-op assessment, and general oxygenation checks for outpatient practices.
Frequently Asked Questions
What is the difference between SpO2, SpCO, and SpMet?
SpO2 is oxygen saturation — the classic pulse-ox reading. SpCO is noninvasive carboxyhemoglobin, used to screen for carbon-monoxide exposure. SpMet is noninvasive methemoglobin, relevant to drug exposures like benzocaine, dapsone, and nitrites. The rainbow sensor measures all three from one sensor.
Why does this need a rainbow RC cable and not an M-LNC?
Rainbow sensors carry extra wavelengths for SpCO and SpMet measurement and use the 20-pin rainbow connector. Standard 14-pin M-LNC cables are SpO2-only and cannot transmit the rainbow data channels.
Can I use this on a standard pulse oximeter?
The rainbow sensor requires a rainbow-enabled device (Rad-57, Radical-7, or a monitor with rainbow SET). On a standard SpO2-only device it will only transmit oxygen saturation — you lose SpCO and SpMet capability.
Are these genuine Masimo products?
Yes. Pacific Biomedical stocks authentic Masimo OEM product. All items ship new in original Masimo packaging with full manufacturer warranty.
How quickly does this ship?
Most in-stock items ship within 1–2 business days from our warehouse. Expedited and overnight options are available at checkout.
How do I place an order or request a quote?
Email CustomerService@pacificbiomedical.com or call us at (844) 436-3526. We support net terms for agencies and hospitals, and we ship to all 50 states.
