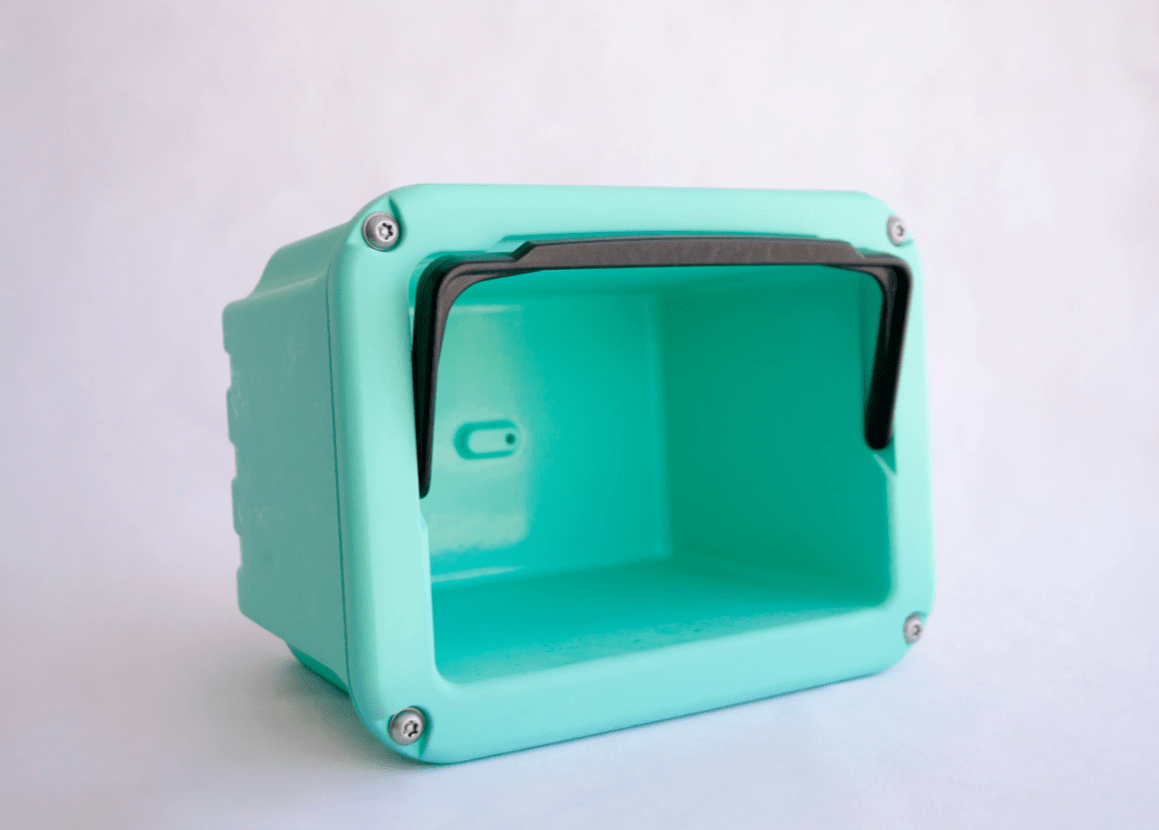

Delta ICE 2L Temperature Control Insert, PCM Pack A-001377
$650.00
SKU:
DD-A-001377
The Delta ICE 2L Temperature Control Insert (PN A-001377) from Delta Development Team is the aluminum phase change (PCM) insert that cools the Delta ICE 2L Smart Blood Cooler. Built-in NIST-traceable sensors and an aluminum body even out the cold and eliminate hot spots, holding two 500 mL bags of whole blood at 2 to 6 C for 48 hours with no glycol.1 Delta recommends an additional insert with every cooler so a conditioned spare is ready for the next call.1 Pacific Biomedical is an Authorized Delta Development Team Distributor (USA).
Product Highlights:
- Two 500 mL bags at 2 to 6 C for 48 hours1
- No glycol: the aluminum PCM insert replaces glycol packs1
- Even cooling: promotes temperature uniformity and an even thaw, eliminating hot spots1
- Built-in NIST-traceable sensors that feed the cooler display and BloodCOMM12
- Simple conditioning: 8 hours at -9.5 C (15 F), 4.7 L of freezer space, 15 minutes of prep3
- Pairs with Delta TempWatch, which alarms when the insert reaches 2 C and is ready to pack4
Specifications:
| Manufacturer | Delta Development Team |
|---|---|
| Manufacturer part number (MPN) | A-001377 |
| SKU | DD-A-001377 |
| Type | Aluminum phase change (PCM) temperature control insert |
| Fits | Delta ICE 2L Smart Blood Cooler |
| Payload | Two 500 mL blood bags1 |
| Temperature held | 2 to 6 C for up to 48 hours13 |
| Sensors | Built-in, NIST-traceable |
| Freeze | 8 hours at -9.5 C (15 F)3 |
| Freezer space | 4.7 L |
| Prep time | 15 minutes at 25 C (77 F) ambient |
| Dimensions | 8.1 x 6.2 x 5.8 in |
| Weight | 5.6 lb |
| Glycol required | No |
| Condition | New |
Related products:
- Delta ICE 2L Smart Blood Cooler
- Delta TempWatch
- Delta ICE 2L External Battery Bundle, Enhanced Case
- Delta ICE 2L 5-Year Extended Warranty
- BloodCOMM Basic
- BloodCOMM Pro
- BloodCOMM Premium
- Delta APRU 6L Autonomous Portable Blood Refrigerator
Frequently Asked Questions:
What is the Delta ICE 2L Temperature Control Insert?
Why buy a spare insert?
Does the Delta ICE insert need glycol?
No. The aluminum insert eliminates the need for glycol.1
How do I freeze and prepare the insert?
How do I know the insert is ready?
Delta TempWatch connects to the insert sensors during conditioning and sounds an audible and visual alarm when the insert reaches 2 C.45
How many units of blood does it hold?
Two 500 mL bags of whole blood.1
How long does it keep blood cold?
Up to 48 hours at 2 to 6 C in 25 C (77 F) ambient, shorter in heat: 24 hours at 44 C and 12 hours at 60 C.3
Are the sensors in the insert or the cooler?
What size and weight is the insert?
8.1 x 6.2 x 5.8 in and 5.6 lb.3
Does the insert fit the Delta APRU 6L?
No. The insert is made for the Delta ICE 2L. The Delta APRU 6L Autonomous Portable Blood Refrigerator is an actively refrigerated unit with its own 4.2 L compartment for six 500 mL bags.17
References
- Delta Development Team Online Store. Temperature Control Insert, Delta ICE2L (A-001377). store.deltadevteam.com
- Delta Development Team. Delta ICE 2L Smart Blood Cooler product page. deltadevteam.com/ice-2l
- Delta Development Team. Delta ICE 2L specification sheet, DDT_SPEC_ICE2L-008. Delta ICE 2L spec sheet (PDF)
- Delta Development Team Online Store. TempWatch (A-001693). store.deltadevteam.com/product/tempwatch
- Delta Development Team Resource Center. TempWatch manual. info.deltadevteam.com/tempwatch-manual
- Delta Development Team Resource Center. Delta ICE 2L manual and setup. info.deltadevteam.com/ice-2l-manual
- Delta Development Team. APRU 6L specification sheet, military edition (10/07/2024). APRU 6L military spec sheet (PDF)
Specifications from Delta Development Team documentation. Pacific Biomedical is an Authorized Delta Development Team Distributor (USA). From Pacific Biomedical.
