Pulmodyne VT Select BVM, PEEP Valve, Manometer, Filter, case of 8

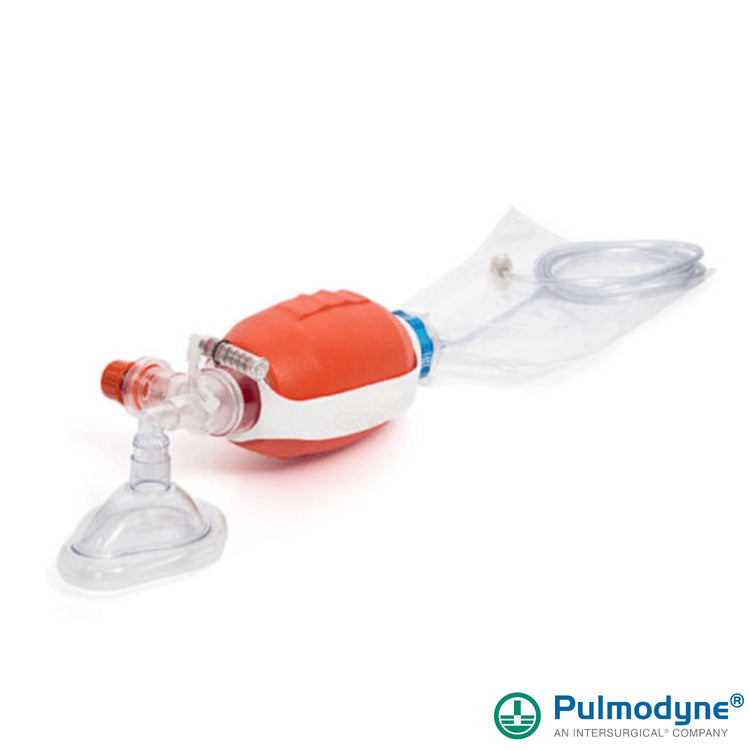

The Pulmodyne VT Select, part number 313-5590, is a manual resuscitator with a timed refill Select valve, supplied with a manometer, PEEP valve, filter and adult mask.1 When the valve is activated, it restricts bag refill to about 4 seconds, which gives about 10 breaths per minute.1 Sold case of 8.2
Product Highlights:
- Timed refill: Activated valve restricts refill to about 4 seconds for about 10 BPM1

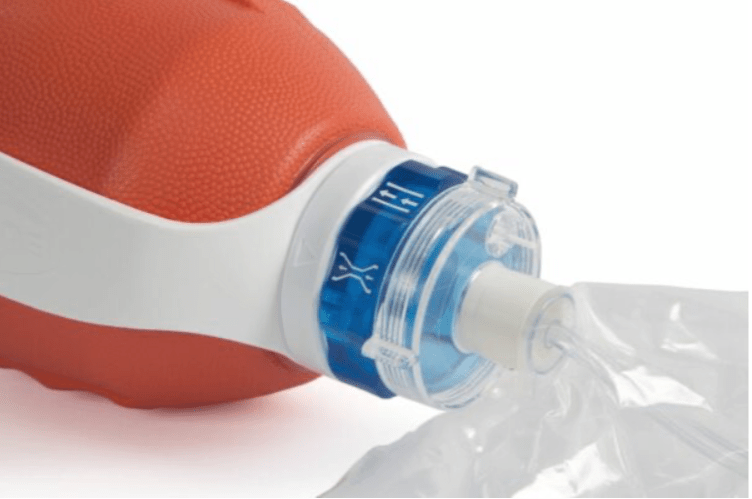

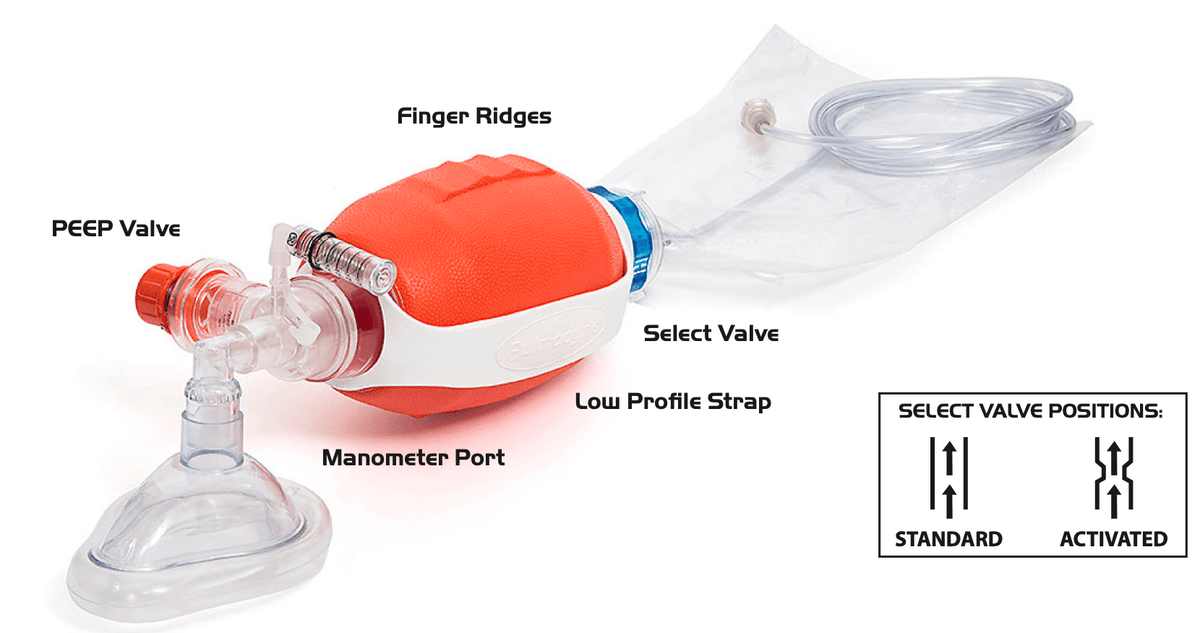

- Two valve positions: Activated gives a controlled tidal volume and timed refill; Standard has no restriction1
- 1200 mL bag: Smaller than most adult bags, to help reduce the risk of hyperinflation or barotrauma1
- 1-hand technique: Raised finger ridges; thumb and three fingers deliver about 500-600 mL1
- Low profile strap: Integrated low profile silicone strap1
- Single use, Rx: AccessGUDID lists it as single use and prescription only2
- Optional accessories: The brochure lists an adjustable PEEP valve, reservoir bag and oxygen tubing, dial manometer and filter as optional accessories1
- Device type: AccessGUDID classes it as a hand-operated device to provide or assist ventilation, with a connector for attachment to a mask or ET tube2
What's in the Box:
- 8 VT Select BVMs, each with manometer, PEEP valve, filter and adult mask1
Specifications:
| Manufacturer | Pulmodyne2 |
|---|---|
| Part number (MPN) | 313-55902 |
| Body mass range | Over 40 kg (Adult)1 |
| Maximum bag volume | 1200 mL1 |
| Delivered volume | 530 mL (1 hand), 690 mL (2 hand)1 |
| Patient connection | 15mm ID x 22mm OD1 |
| Exhalation port | 30mm1 |
| Inspiratory resistance | Under 5 cmH2O (0.5 kPa) at 50 LPM1 |
| Expiratory resistance | Under 5 cmH2O (0.5 kPa) at 50 LPM1 |
| Operating temperature | -18 C to 50 C1 |
| Storage temperature | -40 C to 60 C1 |
| Use | Single use; Rx; not sterile2 |
| GTIN (case) | 108414701007182 |
| Pack | case of 82 |
VT Select Kit Options:
| Part number | Description | Case qty |
|---|---|---|
| 313-5590 | VT Select BVM with Manometer, PEEP Valve, Filter - Adult Mask | 8 |
| 313-5591 | VT Select BVM with Manometer, PEEP Valve - Adult Mask | 8 |
| 313-5592 | VT Select BVM with PEEP Valve - Adult Mask | 8 |
| 313-5593 | VT Select BVM with Manometer - Adult Mask | 8 |
| 313-5594 | VT Select BVM - Adult Mask | 8 |
Source: part list1. All VT Select kits are sold 8 per case.
Related Products:
Product Guides and Documents:
Frequently Asked Questions:
Is this BVM single use?
Yes. The AccessGUDID record lists it as single use.2
Does this BVM require a prescription?
Yes. The AccessGUDID record lists it as a prescription (Rx) device.2
Is this BVM sterile?
No. The AccessGUDID record lists it as not sterile, with no sterilization before use.2
How many come in a case?
8 per case.2
What size is this BVM?
Adult, with an adult mask. The brochure lists a body mass range over 40 kg.1
What is the VT Select?
A manual resuscitator with a tactile feedback system. When activated, the valve restricts refill of the bag to about 4 seconds, about 10 BPM.3
What tidal volume does the VT Select deliver?
With the valve activated, Pulmodyne says to press with your thumb and three fingers to deliver about 500-600 mL. The brochure lists 530 mL with one hand and 690 mL with two.1
How big is the VT Select bag?
1200 mL, which Pulmodyne says is smaller than most adult bags on the market.3
Does the VT Select come with a PEEP valve?
313-5590 comes with a PEEP valve, manometer and filter. Other kits (313-5591 to 313-5594) leave some of these out.1
Is there a BVM with a manometer?
Yes. 313-5590 comes with a manometer. 313-5593 is the VT Select kit with a manometer only.1
Does it include a filter?
Yes. 313-5590 is the VT Select kit with manometer, PEEP valve and filter.1
Manufacturer Sources
- Pulmodyne. VT Select brochure 2011B-07-25-2022, specifications and part list (accessed 2026-11-02). pulmodyne.com.
- U.S. National Library of Medicine. AccessGUDID device record, package DI 10841470100718, model 313-5590 (accessed 2026-11-02). accessgudid.nlm.nih.gov.
- Pulmodyne. VT Select product page (accessed 2026-11-02). pulmodyne.com.
Specifications are from Pulmodyne's VT Select brochure. Use the BVM as directed by Pulmodyne and the treating clinician.1
